View larger
Images are for illustrative purposes only. Please refer to data sheet for details

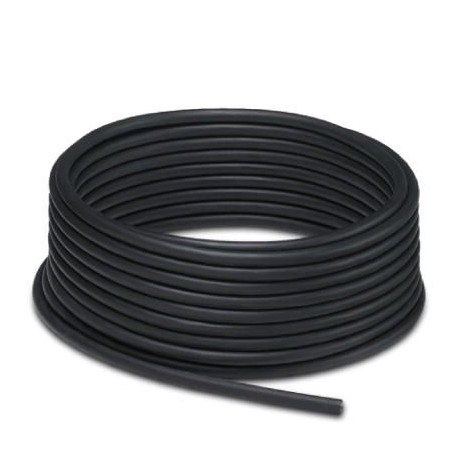

SACB-16X0,5/ 3X1,0-50,0 VPUR 1430938 PHOENIX CONTACT Master cable ring
SACB-16X0,5/ 3X1,0-50,0 VPUR
1430938
PHOENIX CONTACT
1 Pcs.
Master cable ring
Main cable for sensor/actuator boxes, with PE conductor, unshielded, PUR/PP material, 19 poles, 16 x 0.50 mm² and 3 x 1.00 mm², length: 50 m
Cables > Power cable less 1 kV, for moving application
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1430938 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 307 (C-2-2017) |
| GTIN | 4046356332958 |
| Weight per Piece (excluding packing) | 9,115.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Master cable data/connection data
| Length of cable | 50 m |
|---|---|
| Cable type | Master cable suitable for flexible cable conduit |
Cable
| Cable type | PUR halogen-free black |
|---|---|
| Cable type (abbreviation) | PUR |
| Cable abbreviation | Li9Y11Y-HF |
| Conductor cross section | 16x 0.5 mm² (Signal line) |
| 3x 1 mm² (power line) | |
| AWG signal line | 20 |
| AWG power supply | 17 |
| Conductor structure signal line | 64x 0.10 mm |
| Conductor structure, voltage supply | 128x 0.10 mm |
| Wire colors | brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown |
| Overall twist | Wires twisted in layers |
| External sheath, color | black RAL 9005 |
| External cable diameter D | 11.6 mm ±0,3 mm |
| Smallest bending radius, fixed installation | 116 mm |
| Smallest bending radius, movable installation | 116 mm |
| Number of bending cycles | 1500000 |
| Bending radius | 116 mm |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
| Outer sheath, material | PUR |
| Material conductor insulation | PP |
| Conductor material | Bare Cu litz wires |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 2000 V |
| Special properties | Silicone-free |
| Flame resistance | DIN EN 50265 |
| Resistance to oil | according to VDE 0472 Part 803 |
| Other resistance | Highly resistant to acids, alkaline solutions and solvents |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.127060106eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027062000eCl@ss 7.027062011eCl@ss 8.027062011eCl@ss 9.027062011
| Feature Name | Feature Value |
|---|---|
| AWG size (EF011789) | Other |
| Nominal cross section conductor (EF000060) | 0.5 mm² |
| Conductor category (EF001632) | Class 6 = very flexible |
| Number of cores (EF001792) | 19 |
| Screen over stranding element (EF001623) | None |
| Stranding element (EF001617) | No |
| Screen over stranding (EF001624) | None |
| Material core insulation (EF000061) | Other |
| Specification core insulation (EF011805) | Polypropylene (PP) |
| Core identification (EF000067) | Colour |
| With protective conductor (EF007468) | Yes |
| Suspension element (EF001794) | Other |
| Material outer sheath (EF001625) | Other |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Black |
| Screen (EF001791) | No |
| Torsion resistant (EF001687) | No |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Cable width approx. (EF003796) | 11.6 mm |
| Cable height approx. (EF003797) | 11.6 mm |
| Outer diameter approx. (EF003921) | 11.6 mm |
| Min. permitted bending radius, moving application with forced guidance (EF011801) | 116 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 116 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 116 mm |
| Nominal voltage U0 (EF001790) | 300 V |
| Max. conductor temperature (EF003803) | 90 °C |
