View larger
Images are for illustrative purposes only. Please refer to data sheet for details

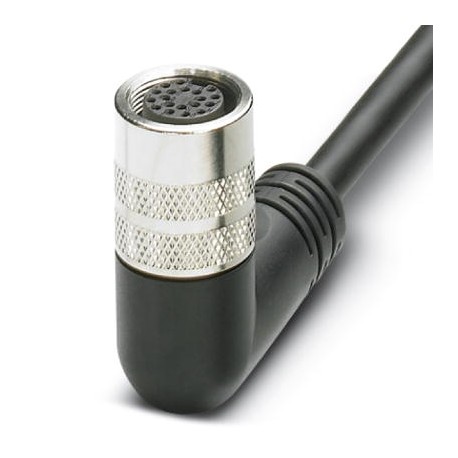

SAC-14P-10,0-PUR/M16FR 1693759 PHOENIX CONTACT Master cable
SAC-14P-10,0-PUR/M16FR
1693759
PHOENIX CONTACT
1 Pcs.
Master cable
Main cable, application: sensor/actuator box Metal, number of plug-in stations: 10, number of poles: 14, status indication: No; Main cable connection: M16 plug-in connection, PUR/PVC, cable length: 10 m, shielding: no
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1693759 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 313 (C-2-2017) |
| GTIN | 4017918189099 |
| Weight per Piece (excluding packing) | 1,203.100 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 125 V AC |
|---|---|
| 150 V DC | |
| Number of positions | 14 |
| Number of slots | 10 |
| Sensor/actuator connection system | M8 socket |
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
| -40 °C ... 90 °C (for fixed installation) | |
| -5 °C ... 80 °C (for flexible installation) |
Master cable data/connection data
| Connection method | M16 plug connection |
|---|---|
| Length of cable | 10 m |
| Cable type | Master cable suitable for flexible cable conduit |
| Signal line cross section | 10x 0.34 mm² |
| AWG signal line | 22 |
| Conductor structure signal line | 42x 0.10 mm |
| Power supply cross section | 2x 0.75 mm² |
| AWG power supply | 18 |
| Conductor structure, voltage supply | 96x 0.10 mm |
| External diameter | 9.1 mm |
| Max. bending cycles | 1500000 |
| Bending radius | 100 mm |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
Insulation material
| Housing material | PUR |
|---|---|
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Gold-plated |
| Material of the contact carrier on the master cable side | TPU |
| Material of threaded sleeve | Cu alloy |
| Material of threaded sleeve surface | Nickel-plated |
| Sealing material | NBR |
Connection assignment
| Slot/position = pin = conductor color | 1 / 4 (A) = P = WH |
|---|---|
| 2 / 4 (A) = J = GN | |
| 3 / 4 (A) = T = YE | |
| 4 / 4 (A) = S = GY | |
| 5 / 4 (A) = G = PK | |
| 6 / 4 (A) = R = RD | |
| 7 / 4 (A) = E = BK | |
| 8 / 4 (A) = O = VT | |
| 9 / 4 (A) = C = WH/PK | |
| 10 / 4 (A) = N = PK/BN | |
| 1-10 / 1 (+120 V) = A+M = BN | |
| 1-10 / 3 (0 V) = L+U = BU |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027060311
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 14 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Angled |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 10 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -5 °C |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP67 |
