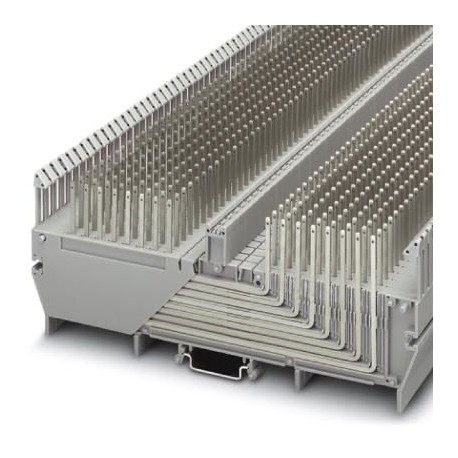

PHOENIX CONTACT RV 8-TP(2,4X0,8)L RV 8-TP(2,4X0,8)L 3191013 PHOENIX CONTACT Marshalling panel View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RV 8-TP(2,4X0,8)L 3191013 PHOENIX CONTACT Marshalling panel

RV 8-TP(2,4X0,8)L

3191013

PHOENIX CONTACT

1 Pcs.

Marshalling panel Switching distributor, nominal voltage: 250 V, nominal current: 5 A, cross-section: 0.22 mm² - 0.56 mm², AWG: 20 - 24, connection type: TERMI-POINT®, number of poles: 1, number of connections: 16, width: 7.6 mm, length: 202 mm, color: gray, mounting: NS 35/7.5, NS 35/15

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3191013
Packing unit5 pc
Catalog pagePage 578 (C-3-2013)
GTIN4017918093426
Weight per Piece (excluding packing)68.110 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels1
Number of connections16
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage4 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Nominal current IN5 A
Max. load current5 A
Nominal voltage UN250 V
Open side panelNo
Number of positions1

Dimensions

Width7.6 mm
Length202 mm
Height NS 35/7,581.5 mm
Height NS 35/1589 mm

Connection data

Conductor cross section solid min.0.22 mm²
Conductor cross section solid max.0.56 mm²
Conductor cross section flexible min.0.22 mm²
Conductor cross section flexible max.0.56 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.20
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.5 mm²
Connection methodTERMI-POINT®
TERMI-POINT pin dimensions2.4 x 0.8 mm
Position of the TERMI-POINT pinvertical

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
