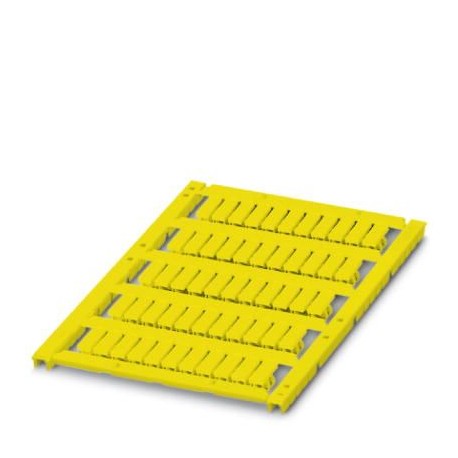

PHOENIX CONTACT UCT-WMS 3,2 (12X4) YE UCT-WMS 3,2 (12X4) YE 0828572 PHOENIX CONTACT Conductor marking collar View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UCT-WMS 3,2 (12X4) YE 0828572 PHOENIX CONTACT Conductor marking collar

UCT-WMS 3,2 (12X4) YE

0828572

PHOENIX CONTACT

8 Pcs.

Conductor marking collar Conductor identification sleeve, Mat, yellow, unlabeled, labelable with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting class: slip, for terminal width: 5.2 mm, cable diameter range: 1.5 ... 3.2 mm, usable area: 12 x 4 mm, Number of individual indexes: 55

Cables > Cable coding system
MS Material

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0828572
Packing unit8 pc
Minimum order quantity8 pc
Catalog pagePage 216 (C-3-2017)
GTIN4046356519687
Weight per Piece (excluding packing)12.520 g
Custom tariff number39269097
Country of originPL (Poland)

Dimensions

Length (b)12 mm
Width (a)4.3 mm
Height (c)5.8 mm
Cable diameter1.5 mm ... 3.2 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 120 °C

General

NoteCan be labeled via thermal transfer
Coloryellow
TypeCard form
Componentsfree from silicone and halogen
Flammability rating according to UL 94V0
MaterialPC V0
RoHS compliantYes
Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Number of individual labels55
Number of individual labels per row11
PrintabilityThermal transfer
Inkjet printing
Device5146464 THERMOMARK CARD
5147888 BLUEMARK LED
5147999 BLUEMARK CLED
Ink ribbon5146613 THERMOMARK CARD-UCT-MAG3
0801371 THERMOMARK-RIBBON 110-TC
5147421 BLUEMARK FLUID-CARTRIDGE
5146662 BLUEMARK CLED-FLUID-CARTR.
Test for substances that would hinder coating with paint or varnishVW PV 3.10.7:2005-02
ResultTest passed
Test specification weathering-resistanceFollowing ISO 4892-2:2013-03
Test duration96 h
Wipe resistance test resultTest passed
Salt spray test specificationDIN EN 60068-2-11:2000-02
Test duration96 h
Salt spray testing resultTest passed
Wipe resistance of test specification inscriptionsDIN EN 61010-1 (VDE 0411-1):2011-07
ResultTest passed
Marking mounting typeslide on
ResultTest passed
Oxygen index (DIN EN ISO 4589-2)32.4 %
R22HL 1 - HL 3
R23HL 1 - HL 3
R24HL 1 - HL 3

Standards and Regulations

Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3

Environmental Product Compliance

China RoHSFor details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
