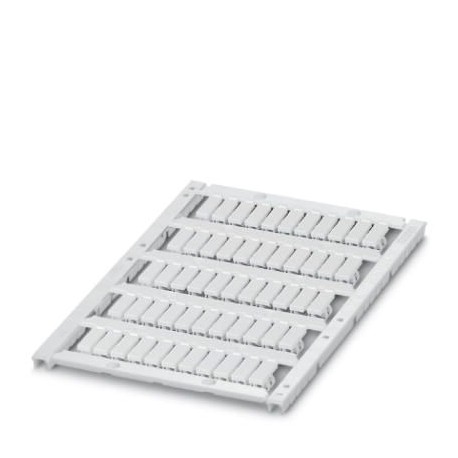

PHOENIX CONTACT UCT-WMS 3,2 (12X4) UCT-WMS 3,2 (12X4) 0828570 PHOENIX CONTACT Conductor marking collar View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UCT-WMS 3,2 (12X4) 0828570 PHOENIX CONTACT Conductor marking collar

UCT-WMS 3,2 (12X4)

0828570

PHOENIX CONTACT

8 Pcs.

Conductor marking collar Conductor identification sleeve, Mat, white, unlabeled, labelable with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting class: slip, for terminal width: 5.2 mm, cable diameter range: 1.5 ... 3.2 mm, usable area: 12 x 4 mm, Number of individual indexes: 55

Cables > Cable coding system
MS Material

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0828570
Packing unit8 pc
Minimum order quantity8 pc
Catalog pagePage 216 (C-3-2017)
GTIN4046356519670
Weight per Piece (excluding packing)12.520 g
Custom tariff number39269097
Country of originPL (Poland)

Dimensions

Length (b)12 mm
Width (a)4.3 mm
Height (c)5.8 mm
Cable diameter1.5 mm ... 3.2 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 120 °C
Recommended storage conditions23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.

General

NoteCan be labeled via thermal transfer
Colorwhite
TypeCard form
Componentsfree from silicone and halogen
Flammability rating according to UL 94V0
MaterialPC V0
RoHS compliantYes
Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Number of individual labels55
Number of individual labels per row11
Test for substances that would hinder coating with paint or varnishVW PV 3.10.7:2005-02
ResultTest passed
Test specification weathering-resistanceFollowing ISO 4892-2:2013-03
Test duration96 h
Wipe resistance test resultTest passed
Salt spray test specificationDIN EN 60068-2-11:2000-02
Test duration96 h
Salt spray testing resultTest passed
Wipe resistance of test specification inscriptionsDIN EN 61010-1 (VDE 0411-1):2011-07
ResultTest passed
Marking mounting typeslide on
ResultTest passed
Oxygen index (DIN EN ISO 4589-2)32.4 %
R22HL 1 - HL 3
R23HL 1 - HL 3
R24HL 1 - HL 3

Standards and Regulations

Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3

Environmental Product Compliance

China RoHSFor details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
