View larger
Images are for illustrative purposes only. Please refer to data sheet for details

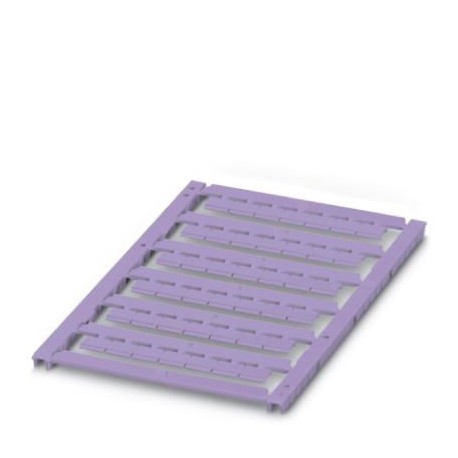

UCT-TMF 8 VT 0829201 PHOENIX CONTACT Marker for terminal blocks
UCT-TMF 8 VT
0829201
PHOENIX CONTACT
10 Pcs.
Marker for terminal blocks
Marker for terminals, Mat, violet, unlabeled, labelable with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting class: fit, for terminal width: 8.2mm, useful surface: 7.4 x 4.7 mm, Number of individual indexes: 42
Automation > Labelling for terminal block
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0829201 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 143 (C-3-2017) |
| GTIN | 4046356595971 |
| Weight per Piece (excluding packing) | 10.370 g |
| Custom tariff number | 39269097 |
| Country of origin | PL (Poland) |
General
| Note | Can be labeled via thermal transfer |
|---|---|
| Color | violet |
| Type | flat |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | V0 |
| Material | PC |
| PC | |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 42 |
| Number of individual labels per row | 7 |
| Printability | Thermal transfer |
| Inkjet printing | |
| Device | 5146464 THERMOMARK CARD |
| 5146563 THERMOMARK CARD-UCT-MAG2 | |
| 5147888 BLUEMARK LED | |
| 5147999 BLUEMARK CLED | |
| Ink ribbon | 0801371 THERMOMARK-RIBBON 110-TC |
| 5147421 BLUEMARK FLUID-CARTRIDGE | |
| 5146662 BLUEMARK CLED-FLUID-CARTR. | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | snap into flat marker groove |
| Result | Test passed |
| Oxygen index (DIN EN ISO 4589-2) | 32.4 % |
| R22 | HL 1 - HL 3 |
| R23 | HL 1 - HL 3 |
| R24 | HL 1 - HL 3 |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
