View larger
Images are for illustrative purposes only. Please refer to data sheet for details

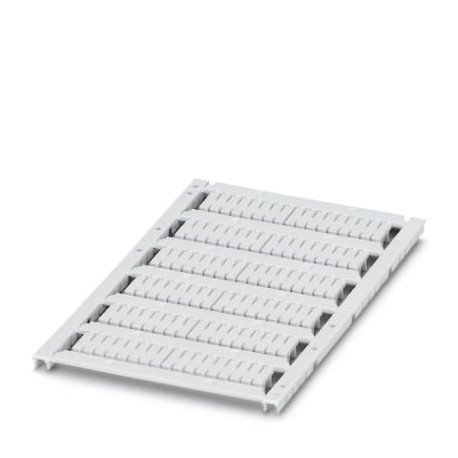

UCT-TM 3,5 CUS 0829581 PHOENIX CONTACT Marker for terminal blocks
UCT-TM 3,5 CUS
0829581
PHOENIX CONTACT
1 Pcs.
Marker for terminal blocks
Terminal marker, available: by mats, white, labeled according to customer's instructions, mounting class: fit in groove for high index, for terminal width: 3.5 mm, usable area: 2.95 x 10.5 mm, Number of individual indices: 102
Automation > Labelling for terminal block
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0829581 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 82 (C-5-2013) |
| GTIN | 4046356597302 |
| Weight per Piece (excluding packing) | 14.200 g |
| Custom tariff number | 49119900 |
| Country of origin | DE (Germany) |
General
| Note | Can be labeled via thermal transfer |
|---|---|
| Color | white |
| Type | high |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | V0 |
| Material | PC |
| PC | |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 102 |
| Number of individual labels per row | 17 |
| Printability | Thermal transfer |
| Inkjet printing | |
| Device | 5146464 THERMOMARK CARD |
| 5146480 THERMOMARK CARD-UCT-MAG1 | |
| 5147888 BLUEMARK LED | |
| 5147999 BLUEMARK CLED | |
| Ink ribbon | 0801371 THERMOMARK-RIBBON 110-TC |
| 5147421 BLUEMARK FLUID-CARTRIDGE | |
| 5146662 BLUEMARK CLED-FLUID-CARTR. | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN ISO 9227:2012-09 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | snap into tall marker groove |
| Result | Test passed |
| Oxygen index (DIN EN ISO 4589-2) | 32.4 % |
| R22 | HL 1 - HL 3 |
| R23 | HL 1 - HL 3 |
| R24 | HL 1 - HL 3 |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
