View larger
Images are for illustrative purposes only. Please refer to data sheet for details

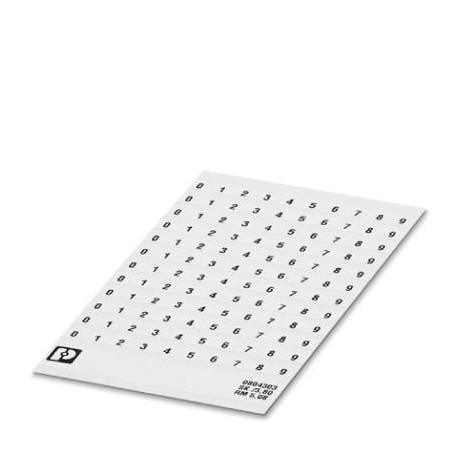

SK 5,08/3,8: 0-9 0804303 PHOENIX CONTACT Marker for terminal blocks
SK 5,08/3,8: 0-9
0804303
PHOENIX CONTACT
10 Pcs.
Marker for terminal blocks
Striped card, Elbow, white, labeled, longitudinal: sequential numbers 0 ... 9, Mounting type: glued, for terminal width: 5.08 mm, usable area: 5.08 x 3.8 mm
Automation > Labelling for terminal block
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0804303 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 502 (CL-2009) |
| GTIN | 4017918124151 |
| Weight per Piece (excluding packing) | 0.720 g |
| Custom tariff number | 49119900 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 150 °C |
|---|---|
| Ambient temperature (assembly) | > 15 °C |
| Recommended storage conditions | 23 °C / 50% relative humidity. Storage in the original packaging is recommended prior to processing. |
General
| Color | white |
|---|---|
| Type | adhesive |
| Components | free from silicone and halogen |
| Material | Polyester |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Printing direction | Horizontal |
| Printing | consecutive numbers 0 ... 9 |
| Number of marker strips | 12 |
| Adhesive | Acrylic |
| Printability | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146231 THERMOMARK X1.2 | |
| Ink ribbon | 5145384 THERMOMARK-RIBBON 110 |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Foil strength | 53 µm |
| Adhesive strength | 20 µm |
| Marking mounting type | adhesive |
