View larger
Images are for illustrative purposes only. Please refer to data sheet for details

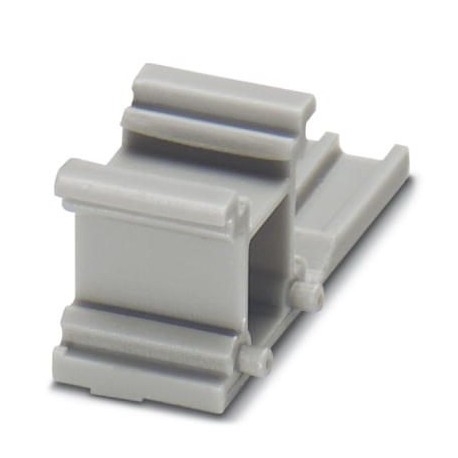

DF-PTMC-ZB 3270410 PHOENIX CONTACT Marker adapter
DF-PTMC-ZB
3270410
PHOENIX CONTACT
10 Pcs.
Marker adapter
Label adapter, for direct mounting above and housing the marking, length: 30 mm, width: 11 mm, height: 13 mm, color: gray
Automation > Accessories/spare parts for terminals
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3270410 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 55 (C-1-2017) |
| GTIN | 4055626061085 |
| Weight per Piece (excluding packing) | 1.000 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
General
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
|---|---|
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Static insulating material application in cold | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32 % |
| NF F16-101, NF F10-102 Class I | 2 |
| NF F16-101, NF F10-102 Class F | 2 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Standards and Regulations
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
|---|---|
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
