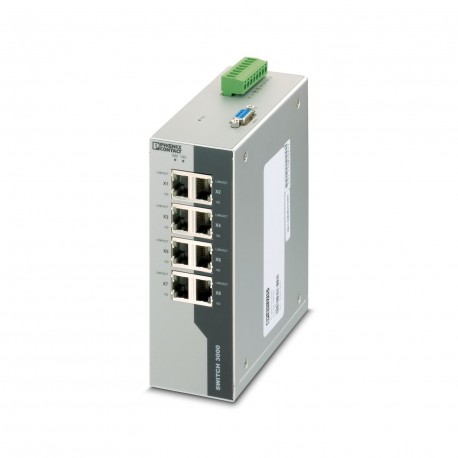

PHOENIX CONTACT FL SWITCH 3008T FL SWITCH 3008T 2891035 PHOENIX CONTACT Industrial Ethernet Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL SWITCH 3008T 2891035 PHOENIX CONTACT Industrial Ethernet Switch

FL SWITCH 3008T

2891035

PHOENIX CONTACT

1 Pcs.

Industrial Ethernet Switch Ethernet managed switch with eight RJ45 ports for 10/100 MBit/s and an operating temperature of -40 °C ... +75 °C Managed Ethernet switch with eight RJ45 ports at 10/100 Mbps and operating temperature of -40°C ... +75°C

Automation > Network switch
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Dimensions
Dimensional drawingensrfwidcg.jpg
Width54.4 mm
Height146.4 mm
Depth125 mm
Notes
Note on application
Note on applicationOnly for industrial use
Utilization restriction
EMC noteEMC: class A product, see manufacturer's declaration in the download area
Utilization restriction
CCCex noteUse in potentially explosive areas is not permitted in China.
Material specifications
Housing materialAluminum
Mounting
Mounting typeDIN rail mounting
Interfaces
Ethernet (RJ45)
Connection methodRJ45
Note on the connection methodAuto negotiation and autocrossing
Transmission speed10/100 Mbps
Transmission physicsEthernet in RJ45 twisted pair
Transmission length100 m
No. of channels8 (RJ45 ports)
Product properties
Product typeSwitch
Product familyManaged Switch 3000
TypeBlock design
MTTF35.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
Data management status
Article revision10
Insulation characteristics
Protection classIII (VDE 0106, IEC 60536)
Switch functions
Basic functionsStore and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Signal contact control voltage24 V DC
Signal contact control current100 mA
RedundancyERR (Extended ring redundancy)
Status and diagnostic indicatorsLEDs: US1, US2(redundant voltage supply), link and activity per port
Security functions
Basic functionsStore and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Electrical properties
Local diagnosticsUS1, US2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Red LED
Maximum power dissipation for nominal condition5.04 W
Test sectionSupply voltage/functional ground 500 V 1 min.
Transmission mediumCopper
Supply
Supply voltage (DC)24 V DC (redundant)
Supply voltage range12 V DC ... 48 V DC
Inrush current4.68 A (3.3 ms)
Residual ripple3.6 VPP(within the permitted voltage range)
Typical current consumption215 mA (at US= 24 V DC)
Function
Signal contact control voltage24 V DC
Signal contact control current100 mA
Connection data
Connection technology
Connection namePower supply
pluggableyes
Power supply
Connection methodScrew connection
Conductor cross section, rigid0.2 mm² ... 2.5 mm²
Conductor cross section, flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Stripping length7 mm
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 75 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Air pressure (operation)57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Air pressure (storage/transport)57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Approvals
Conformity/Approvals
ConformanceCE-compliant
ATEX II 3 G Ex nA nC IIC T4 Gc
EU-type examination certificateDEMKO 16 ATEX 1616X
IECExEx nA nC IIC T4 Gc
IECEx certificateIECEx UL 16.0094X
UL, USA / CanadaClass I, Div. 2, Groups A, B, C, D
EMC data
Conformance with EMC directivesIEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Class A
NEMA TS-2
Noise immunityEN 61000-6-2:2005
Noise emissionEN 61000-6-4
System properties
Functionality
Basic functionsStore and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Signaling
Status displayLEDs: US1, US2(redundant voltage supply), link and activity per port

ETIM for 2891035 Data networking products (EC000734)
Feature Name Feature Value
Ethernet (EF003535) Yes
Number of other ports (EF007643) 8
Mounting method (EF000003) Other
Manageable (EF004912) Yes
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 155.96 mm
Width (EF000008) 54.4 mm
Depth (EF000049) 132.2 mm
