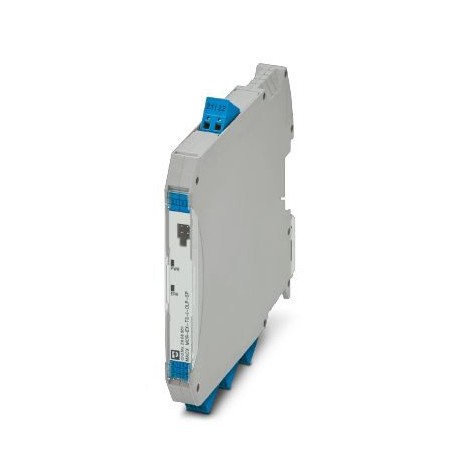

PHOENIX CONTACT MACX MCR-EX-TS-I-OLP-SP MACX MCR-EX-TS-I-OLP-SP 2908661 PHOENIX CONTACT The output-loop-powered temperature transmitter transmits up.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MACX MCR-EX-TS-I-OLP-SP 2908661 PHOENIX CONTACT The output-loop-powered temperature transmitter transmits up..

MACX MCR-EX-TS-I-OLP-SP

2908661

PHOENIX CONTACT

1 Pcs.

The output-loop-powered temperature transmitter transmits up to two sensor signals from RTD and TC sensors as well as from resistance-type sensors and voltage sensors via HART communication or 4 ... 20 mA, configurable. SIL 2/3, intrinsic safety, Push-in connection. Ex i, Output Loop-Fed Temperature Converter to transmit up to 2 sensor signals from RTD and CT sensors, as well as resistance and voltage transmitters using 4 mA... 20 mA. HART, Standard Configuration, Safety Integrity Level (SIL, IEC61508): 2, Systematic Capability: 3, Push-in Connection

Automation > Temperature transformer
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2908661
Packing unit1 pc
Catalog pagePage 190 (C-5-2019)
GTIN4055626355436
Weight per Piece (excluding packing)0.000 g
Custom tariff number85437090
Country of originDE (Germany)

Drawings

Block diagram

Block diagram

Pictogram

Pictogram

Back to top

Dimensions

Width12.5 mm
Height99 mm
Depth114.5 mm
Back to top

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
-40 °C ... 70 °C (SIL active)
Ambient temperature (storage/transport)-40 °C ... 100 °C
Maximum altitude≤ 4000 m (Above sea level)
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Degree of protectionIP20 (not assessed by UL)
Back to top

Power supply

Supply voltage range12 V ... 42 V (Standard)
Back to top

Connection data

Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 16
Back to top

General

Step response (0–99%)0.8 s (TC)
Degree of pollution2
Overvoltage categoryII
Colorgray
ConformanceCE-compliant
ATEX II 2 (1) G Ex ib [ia Ga] IIC T6...T4 Gb
IECExEx ib [ia Ga] IIC T6...T4 Gb
UL, USA/CanadaUL 61010 Recognized
FM approvalExia / Class I / Div. 1, 2 / Group ABCD
CSAAIS / Class I / Div. 1 / ABCD
Back to top

Standards and Regulations

ConformanceCE-compliant
ATEX II 2 (1) G Ex ib [ia Ga] IIC T6...T4 Gb
IECExEx ib [ia Ga] IIC T6...T4 Gb
UL, USA/CanadaUL 61010 Recognized
FM approvalExia / Class I / Div. 1, 2 / Group ABCD
NI, Class I, Div. 2, Groups A, B, C, D
CSAAIS / Class I / Div. 1 / ABCD
NI / Class I / Div. 2 / ABCD T6/T5/T4
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 8.027200206
eCl@ss 9.027210129
Back to top

ETIM

ETIM 5.0EC001446
ETIM 6.0EC002919
ETIM 7.0EC002919
Back to top

ETIM for 2908661 Sensors (EC002919)
Feature Name Feature Value
Measuring range (EF001836) -250 °C
Analogue output 0 mA ... 20 mA (EF006808) No
Analogue output 4 mA ... 20 mA (EF006810) Yes
Analogue output 0 V ... 2 V (EF009886) No
Analogue output 0 V ... 5 V (EF009887) No
Analogue output 0 V ... 10 V (EF006807) No
Analogue output 2 V ... 10 V (EF009888) No
With switching output (EF005225) No
Modular version (EF001126) Yes
Integrated configuration function (EF003064) No
Ambient temperature (EF002386) 85 °C
Weight (EF000167) 0.2057 kg

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
