View larger
Images are for illustrative purposes only. Please refer to data sheet for details

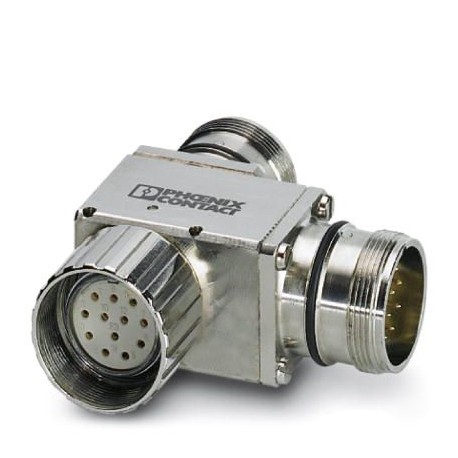

RC-T 12/1BU2ST 1685107 PHOENIX CONTACT Housing
RC-T 12/1BU2ST
1685107
PHOENIX CONTACT
1 Pcs.
Housing
Deliveryman
Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1685107 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 128 (PC-2009) |
| GTIN | 4017918180454 |
| Weight per Piece (excluding packing) | 192.800 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Housing material | CuZn, zinc die-cast |
|---|---|
| Housing surface material | Nickel-plated |
| Contact material | CuZn |
| Contact carrier material | PBTP |
| Seal material | NBR |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Housing material (EF001596) | Brass |
| Coating housing (EF001601) | Other |
| Position cable feed (EF008218) | Other |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Other |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| EMC-version (EF001062) | No |
