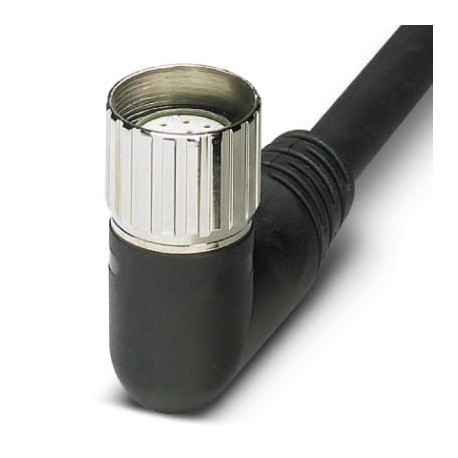

PHOENIX CONTACT RCK-TWUM/BL12/10,0PUR-U RCK-TWUM/BL12/10,0PUR-U 1684043 PHOENIX CONTACT Master cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RCK-TWUM/BL12/10,0PUR-U 1684043 PHOENIX CONTACT Master cable

RCK-TWUM/BL12/10,0PUR-U

1684043

PHOENIX CONTACT

1 Pcs.

Master cable M23 connection female, angled, 12 poles, with 10 m main cable, Pin 9 and 10 linked

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1684043
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 128 (PC-2009)
GTIN4017918172077
Weight per Piece (excluding packing)1,162.300 g
Custom tariff number85444290
Country of originDE (Germany)

General

Rated voltage48 V AC
60 V DC
Number of positions12
Sensor/actuator connection systemM12 socket
NoteThe master cable is earmarked for use on the sensor/actuator boxes with an M23 plug-in connection.

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-40 °C ... 125 °C (Plug / socket)

Master cable data/connection data

Connection methodM23 plug connection
Length of cable10 m

Insulation material

Housing materialPUR
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA

Connection assignment

Slot/position = pin = conductor color1 / 4 (A) = 1 = WH
2 / 4 (A) = 2 = GN
3 / 4 (A) = 3 = YE
4 / 4 (A) = 4 = GY
5 / 4 (A) = 5 = PK
6 / 4 (A) = 6 = RD
7 / 4 (A) = 7 = BK
8 / 4 (A) = 8 = VT
1-8 / 1 (+ 48 V) = 11 = BN
1-8 / 3 (0 V) = 9+10 = BU
1-8 / 5 (PE) = 12 = GN/YE

Cable

Cable typePUR/PVC black
Cable type (abbreviation)PUR
Cable abbreviationLiYY11Y-HF
UL AWM style20549 (80°C/300 V)
Conductor cross section8x 0.34 mm² (Signal line)
3x 0.75 mm² (power line)
AWG signal line22
AWG power supply18
Conductor structure signal line19x 0.15 mm
Conductor structure, voltage supply42x 0.15 mm
Core diameter including insulation1.3 mm ±0.1 mm (Signal line)
1.8 mm ±0.1 mm (power line)
Wire colorsbrown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet
Overall twistWires twisted in layers
External sheath, colorblack RAL 9005
Inner sheath thickness≥ 0.15 mm
Outer sheath thickness≥ 0.38 mm
External cable diameter D8.5 mm ±0.2 mm
Minimum bending radius, fixed installation7.5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles1500000
Minimum bending radius, drag chain applications10 x D
Traversing path2 m
Traversing rate2 m/s
Cable weight107.4 kg/km
Outer sheath, materialPUR
Material, inner sheathPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 5 MΩ*km
Conductor resistance≤ 53 Ω/km (Signal line)
≤ 26 Ω/km (power line)
Nominal voltage, cable300 V AC
Test voltage Core/Core2000 V (50 Hz, 5 min.)
Special propertiesSilicone-free
Flame resistanceDIN EN 50265
Resistance to oilaccording to VDE 0472 Part 803
Other resistanceHighly resistant to acids, alkaline solutions and solvents
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1684043 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 12
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
