View larger
Images are for illustrative purposes only. Please refer to data sheet for details

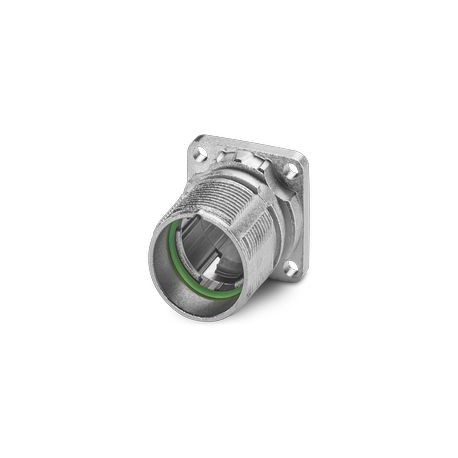

M23-0000000WB00S-SIG 1554116 PHOENIX CONTACT Front panel device connector box, series: M23 PRO Signal, strai..
M23-0000000WB00S-SIG
1554116
PHOENIX CONTACT
1 Pcs.
Front panel device connector box, series: M23 PRO Signal, straight, for standard lock and quick lock ONECLICK, 4x Ø 3.2, note: can only be used in combination with the contact inserts indicated in the accessories. For safety information and installation instructions, see reference article 1629082 (crimped version) or 1339329 (soldered version)
Housing
Device connector housing front wall, series: M23 PRO Signal, straight, for standard and ONECLICK fast-locking system, 4x Ø 3.2, note: can only be used in combination with the contact inserts listed under accessories; for safety notes and installation notes see reference item 1629082 (crimp version) or 1339329 (solder version)
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | Order contact inserts separately |
Product properties
| Product type | Sleeve housings |
| Series | M23 PRO Signal |
| Pg screw connection | none |
Connection data
| Cross section AWG | (converted acc. to IEC) |
Material specifications
| Seal material | FKM |
| Housing material | GD-Zn |
Connector
| Type | straight |
| Housing | |
| Housing material | GD-Zn |
| Flange dimensions | 26 mm x 26 mm |
| Type of locking | for standard and ONECLICK fast locking system |
| Degree of protection (plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
| Thread type | M23 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 / IP68 (2 m / 24 h) |
| Ambient temperature (operation) | -40 °C ... 105 °C (see to derating) |
| Altitude | 2000 m |
Mounting
| Mounting | 4x Ø2,7 |
