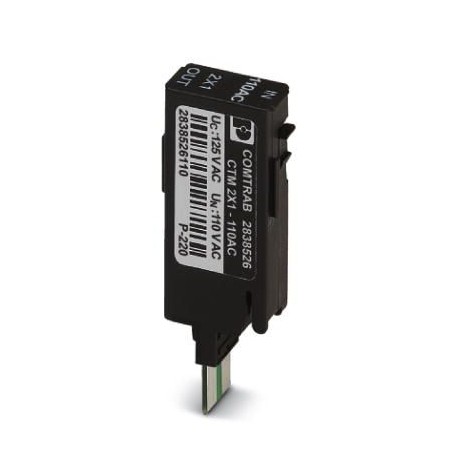

PHOENIX CONTACT CTM 2X1-110AC CTM 2X1-110AC 2838526 PHOENIX CONTACT Surge protection plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CTM 2X1-110AC 2838526 PHOENIX CONTACT Surge protection plug

CTM 2X1-110AC

2838526

PHOENIX CONTACT

1 Pcs.

Surge protection plug LSA-PLUS (COMTRAB CTM) plug-in protection protection for 2 conductors of signal circuits with unilateral ground. Rated voltage: 110 V AC

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2838526
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 166 (C-4-2017)
GTIN4017918819552
Weight per Piece (excluding packing)10.300 g
Custom tariff number85363010
Country of originDE (Germany)

Dimensions

Height21 mm
Width9.4 mm
Depth52.4 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 75 °C
Altitude≤ 2000 m (amsl (above mean sea level))
Degree of protectionIP20

General

Housing materialPA 6.6
Flammability rating according to UL 94V-0
Colorjet black RAL 9005
Overvoltage categoryII
Degree of pollution2
Mounting typeOn CT-TERMIBLOCK and LSA-PLUS disconnect strip
TypeLSA-PLUS module
Direction of actionLine-Line & Line-Earth Ground
Arrester can be tested with CHECKMASTER from software version:From SW rev. 1.10

Protective circuit

IEC test classificationB2
C1
C2
C3
D1
Nominal voltage UN110 V AC
Maximum continuous voltage UC60 V DC
125 V AC
Rated current380 mA AC (25 °C)
150 mA DC (25 °C)
Operating effective current ICat UC≤ 5 µA (per path)
Residual current IPE≤ 5 µA (per path)
Nominal discharge current In(8/20) µs (line-earth)5 kA
Pulse discharge current Iimp(10/350) µs (line-earth)1 kA
Total discharge current Itotal(8/20) µs10 kA
Total discharge current Itotal(10/350) µs2.5 kA
Nominal pulse current Ian (10/1000) µs (line-earth)100 A
Output voltage limitation at 1 kV/µs (line-earth) spike≤ 260 V
Output voltage limitation at 1 kV/µs (line-earth) static≤ 15 V
Residual voltage at In(line-earth)≤ 10 V
Residual voltage with Ian (10/1000) µs (line-earth)≤ 10 V
Voltage protection level Up(line-earth)≤ 260 V (C2 - 10 kV / 5 kA)
≤ 260 V (C3 - 100 A)
Voltage protection level Upstatic (line-earth)≤ 10 V (C2 - 10 kV / 5 kA)
≤ 10 V (C3 - 100 A)
Response time tA(line-earth)≤ 1 ns
Input attenuation aE, asym.typ. 0.3 dB (≤ 3 MHz / 100 Ω)
Cut-off frequency fg (3 dB), asym. (PE) in 100 Ohm systemtyp. 20 MHz
Capacity (line-earth)typ. 100 pF
Resistance in series3.3 Ω 20 %
Surge protection fault messagenone
Max. required back-up fuse150 mA (T/IEC 60127-2/3)
Impulse durability (line-earth)B2 - 4 kV/100 A
C2 - 10 kV/5 kA
C3 - 100 A
D1 - 1 kA
Alternating current carrying capacity (line-earth)5 A - 1 s

Connection data

Connection methodcan be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips
Connection method INCOMTRAB plug-in system
Connection method OUTCOMTRAB plug-in system
Connection technologyLSA-PLUS

Connection, equipotential bonding

Connection methodSpring contact

Standards and Regulations

Standards/specificationsIEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012
EN 61643-21 2001 + A1:2009 + A2:2013

Classifications


ETIM for 2838526 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 110 V
