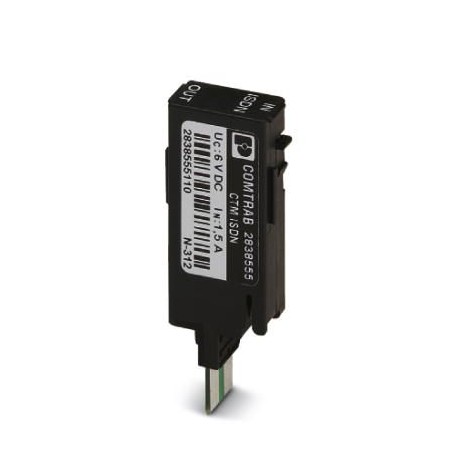

CTM ISDN 2838555 PHOENIX CONTACT Surge protection plug
CTM ISDN
2838555
PHOENIX CONTACT
1 Pcs.
Surge protection plug
LSA-PLUS (COMTRAB CTM) plug-in protection protection for a pair of conductors of an ISDN So interface.
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2838555 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 167 (C-4-2017) |
| GTIN | 4017918819583 |
| Weight per Piece (excluding packing) | 9.090 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
General
| Housing material | PA |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | black |
| Standards for cearances and creepage distances | DIN VDE 0110-1 |
| IEC 60664-1 | |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Mounting type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
| Type | LSA-PLUS module |
| Number of positions | 2 |
| Direction of action | Line-Line & Line-Earth Ground |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.10 |
Protective circuit
| IEC test classification | B2 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| C1 | |
| VDE requirement class | B2 |
| C2 | |
| C3 | |
| D1 | |
| C1 | |
| Nominal voltage UN | 6 V DC |
| Maximum continuous voltage UC | ± 6 V DC |
| Rated current | 1.5 A (25 °C) |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In(8/20) µs (line-line) | 350 A |
| Nominal discharge current In(8/20) µs (line-earth) | 5 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 1 kA |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Total discharge current Itotal(10/350) µs | 2.5 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 10 kA (in total) |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| 100 A | |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 60 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 15 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 700 V |
| Residual voltage at In(line-line) | ≤ 32 V |
| Residual voltage at In(line-earth) | ≤ 55 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 18 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 12 V |
| Voltage protection level Up(line-line) | ≤ 35 V (C1 - 700 V/350 A) |
| ≤ 18 V (C3, 7.5 kV/100 A) | |
| Voltage protection level Up(line-earth) | ≤ 700 V (C2 - 10 kV/5 kA, spike) |
| ≤ 55 V (C2 - 10 kV/5 kA, static) | |
| ≤ 700 V (C3 - 7.5 kV / 100 A, spike) | |
| ≤ 12 V (C3 - 7.5 kV / 100 A, static) | |
| Response time tA(line-line) | ≤ 500 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | 0.3 dB (≤ 45 MHz) |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system | ≥ 100 MHz |
| Capacity (line-line) | 25 pF (f=1 MHz / VR= 0 V) |
| Surge protection fault message | none |
| Impulse durability (line-line) | C2 - 4 kV / 2 kA |
| C3 - 100 A | |
| B2 - 4 kV/100 A | |
| Impulse durability (line-earth) | C2 - 4 kV/2 kA |
| C3 - 100 A | |
| B2 - 4 kV/100 A | |
| D1 - 1 kA |
Connection data
| Connection method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
|---|---|
| Connection method IN | COMTRAB plug-in system |
| Connection method OUT | COMTRAB plug-in system |
| Connection technology | LSA-PLUS |
Classifications
eCl@ss 4.027140201eCl@ss 4.127130801eCl@ss 5.027130801eCl@ss 5.127130800eCl@ss 6.027130800eCl@ss 7.027130807eCl@ss 8.027130807eCl@ss 9.027130807
| Feature Name | Feature Value |
|---|---|
| Nominal voltage AC (EF008798) | 6 V |
