View larger
Images are for illustrative purposes only. Please refer to data sheet for details

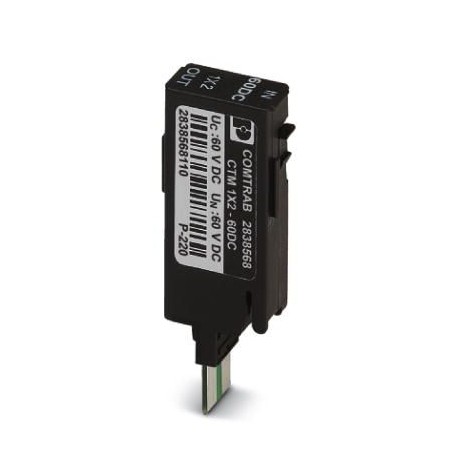

CTM 1X2- 60DC 2838568 PHOENIX CONTACT Surge protection plug
CTM 1X2-60DC
2838568
PHOENIX CONTACT
1 Pcs.
Surge protection plug
LSA-PLUS (COMTRAB CTM) plug-in protection with 2-wire circuit protection for signal circuits without ground potential. Rated voltage: 60 V DC
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2838568 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 102 (C-4-2017) |
| GTIN | 4017918819736 |
| Weight per Piece (excluding packing) | 10.080 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 75 °C |
|---|---|
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | jet black RAL 9005 |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Mounting type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
| Type | LSA-PLUS module |
| Direction of action | Line-Line & Line-Earth Ground |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.10 |
Protective circuit
| IEC test classification | B2 |
|---|---|
| C1 | |
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 60 V DC |
| Maximum continuous voltage UC | 60 V DC |
| 50 V AC | |
| Rated current | 380 mA AC (25 °C) |
| 150 mA DC (25 °C) | |
| Operating effective current ICat UC | ≤ 70 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In(8/20) µs (line-line) | 5 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 5 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 1 kA |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Total discharge current Itotal(10/350) µs | 2.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 160 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 700 V |
| Residual voltage at In(line-line) | ≤ 95 V |
| Residual voltage at In(line-earth) | ≤ 60 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 35 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 12 V |
| Voltage protection level Up(line-line) | ≤ 200 V (C2 - 10 kV / 5 kA) |
| ≤ 160 V (C3 - 100 A) | |
| Voltage protection level Up(line-earth) | ≤ 700 V (C2 - 10 kV / 5 kA) |
| ≤ 700 V (C3 - 100 A) | |
| Voltage protection level Upstatic (line-line) | ≤ 95 V (C2 - 10 kV / 5 kA) |
| ≤ 35 V (C3 - 100 A) | |
| Voltage protection level Upstatic (line-earth) | ≤ 90 V (C2 - 10 kV / 5 kA) |
| ≤ 12 V (C3 - 100 A) | |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 500 kHz / 100 Ω) |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system | typ. 2 MHz |
| Capacity (line-line) | typ. 1.2 nF |
| Resistance in series | 3.3 Ω 20 % |
| Surge protection fault message | none |
| Impulse durability (line-line) | B2 - 4 kV/100 A |
| C2 - 10 kV/5 kA | |
| C3 - 100 A | |
| Impulse durability (line-earth) | B2 - 4 kV/100 A |
| C2 - 10 kV/5 kA | |
| C3 - 100 A | |
| D1 - 1 kA | |
| Alternating current carrying capacity (line-earth) | 5 A - 1 s |
Connection data
| Connection method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
|---|---|
| Connection method IN | COMTRAB plug-in system |
| Connection method OUT | COMTRAB plug-in system |
| Connection technology | LSA-PLUS |
Standards and Regulations
| Standards/specifications | IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
|---|---|
| EN 61643-21 2001 + A1:2009 + A2:2013 |
Classifications
eCl@ss 4.027140201eCl@ss 4.127130801eCl@ss 5.027130801eCl@ss 5.127130800eCl@ss 6.027130800eCl@ss 7.027130807eCl@ss 8.027130807eCl@ss 9.027130807
| Feature Name | Feature Value |
|---|---|
| Nominal voltage DC (EF008799) | 60 V |
