View larger
Images are for illustrative purposes only. Please refer to data sheet for details

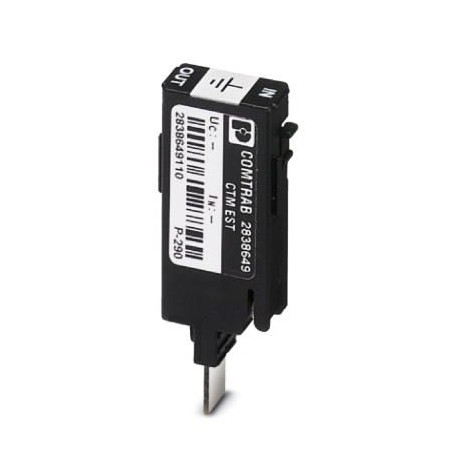

CTM EST 2838649 PHOENIX CONTACT Short-circuit connector
CTM EST
2838649
PHOENIX CONTACT
10 Pcs.
Short-circuit connector
Pluggable LSA-PLUS grounding bracket (COMTRAB CTM) for shorting and grounding potentials in CT-TERMIBLOCK... and interruptible power strip CT 10...
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2838649 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 102 (C-4-2017) |
| GTIN | 4017918907631 |
| Weight per Piece (excluding packing) | 8.360 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
General
| Housing material | PA |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | black |
| Standards for cearances and creepage distances | DIN VDE 0110-1 |
| IEC 60664-1 | |
| Mounting type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
| Type | LSA-PLUS module |
| Number of positions | 2 |
Protective circuit
| Rated current | 1.5 A (25 °C) |
|---|---|
| Nominal discharge current In(8/20) µs (line-earth) | |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Total discharge current Itotal(10/350) µs | 2.5 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | |
| Output voltage limitation at 1 kV/µs (line-earth) spike | |
| Input attenuation aE, sym. | |
| Input attenuation aE, asym. |
Connection data
| Connection method IN | COMTRAB plug-in system |
|---|---|
| Connection method OUT | COMTRAB plug-in system |
| Connection technology | LSA-PLUS |
