View larger
Images are for illustrative purposes only. Please refer to data sheet for details

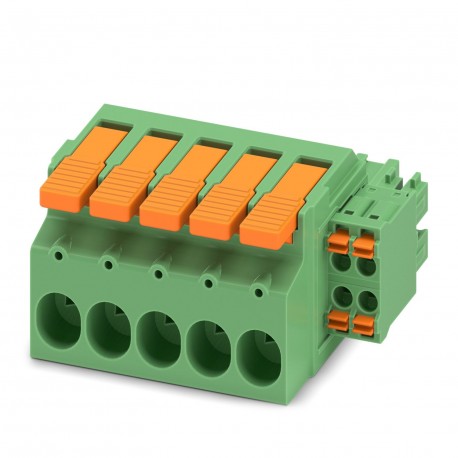

LPCH 6/ 5+4-ST-7,62 1716957 PHOENIX CONTACT Connector, hybrid printed circuit board, nominal current: 41 A, ..
LPCH 6/ 5+4-ST-7,62
1716957
PHOENIX CONTACT
25 Pcs.
Connector, hybrid printed circuit board, nominal current: 41 A, number of poles: 9, pitch: 7.62 mm, Connection type: spring clamp push-in, color: green
Hybrid connector for printed circuit board, nominal section: 6 mm², color: green, nominal current: 41 A, 8 A, nominal voltage (III/2): 1000 V, contact surface: Tin, contact type: Female, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: LPCH 6/.. +4-ST, pitch: 7.62 mm, connection type: Push-in lever connection, driver/printed circuit board connection direction: 0 °, plug-in system: COMBICON PC 6 hybrid, lock: without, fixing type: without, packaging type: boxed
PCB Hybrid Connector, Nominal Cross-Section: 6 mm2, Color: Green, Rated Current: 41 A, 8 A, Rated Voltage (III/2): 1000 V, Contact Surface: Sn, Contact Type: Female, Number of Potentials: 9, Number of Rows: 1, Number of Poles: 9, Number of Connectors: 9, Product Family: LPCH 6/.. +4-PC, Pitch: 7.62 mm, Connection type: Lever push-in connection, Connection direction conductor/board: 0 °, Plug-in system: COMBICON PC 6 hybrid, Locking: without, Mounting type: without, Packaging type: packed in a box
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Type | PCB Hybrid Connectors |
| Product family | LPCH 6/.. +4-H |
| Product Line | COMBICON Connectors L |
| Number of poles | 9 |
| Grid dimension | 7.62 mm |
| Number of ports | 9 |
| Number of rows | 1 |
| Number of potentials | 9 |
| Data maintenance status | |
| Article revision | 05 |
| Nominal current IN | 41 A |
| Rated voltage UN | 1000 V |
| Contact resistance | 0.42 mΩ |
| Rated voltage (III/3) | 800 V |
| Rated Surge Voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated Surge Voltage (III/2) | 8 kV |
| Rated voltage (II/2) | 1000 V |
| Rated Surge Voltage (II/2) | 6 kV |
| Connection technology | |
| Connector system | COMBICON PC 6 hybrid |
| Nominal cross-section | 6 mm² |
| Contact type | Socket |
| Locking | |
| Lock type | without |
| Mounting Flange | without |
| Conductor Connection Power | |
| Connection type | Lever push-in connection |
| Connection direction of the conductor to the mating direction | 0 ° |
| Conductor cross-section rigid | 0.75 mm² ... 10 mm² |
| Flexible conductor cross-section | 0.75 mm² ... 6 mm² |
| Conductor cross-section AWG | 18 ... 8 |
| Flexible conductor cross-section with ferrule without plastic sleeve | 0.75 mm² ... 6 mm² |
| Flexible conductor cross-section with ferrule with plastic sleeve | 0.75 mm² ... 6 mm² |
| Gauge mandrel a x b / diameter | 4.3 mm x 4.0 mm / 4.0 mm |
| Stripping length | 18 mm |
| Conductor connection signal | |
| Connection type | Push-in spring connection |
| Connection direction of the conductor to the mating direction | 0 ° |
| Conductor cross-section rigid | 0.2 mm² ... 1.5 mm² |
| Flexible conductor cross-section | 0.2 mm² ... 1.5 mm² |
| Conductor cross-section AWG | 24 ... 16 |
| Flexible conductor cross-section with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section with ferrule with plastic sleeve | 0.25 mm² ... 1 mm² |
| Gauge mandrel a x b / diameter | 2.4 mm x 1.5 mm / 1.5 mm |
| Stripping length | 10 mm |
| Material information - Contact | |
| Note | WEEE/RoHS compliant, whisker-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Material Contact | Cu alloy |
| Surface finish | Electroplated |
| Metal surface clamping point (top layer) | Tin (4 - 8 μm Sn) |
| Metal Surface Contact Area (Top Layer) | Tin (4 - 8 μm Sn) |
| Material specifications - Housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA GF |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Material specifications - Actuator | |
| Color (Actuator) | orange (2003) |
| Insulating material | PA GF |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Note on operation | COMBICON connectors are connectors without switching capacity (COC) in accordance with DIN EN 61984. When used as intended, they must not be plugged in or disconnected in a live or under load. |
| Dimensional drawing |  |
| Grid dimension | 7.62 mm |
| Width [w] | 47.92 mm |
| Height [h] | 35.65 mm |
| Length [l] | 48 mm |
| Conductor connection | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Exam passed |
| Inspection for conductor damage and loosening | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Exam passed |
| Inspection for conductor damage and loosening | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Exam passed |
| Connecting and disconnecting multiple times | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Exam passed |
| Tensile testing | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/Conductor type/Tensile force Setpoint/Actual value | 0.75 mm² / rigid / > 30 N |
| 0.75 mm² / flexible / > 30 N | |
| 10 mm² / rigid / > 90 N | |
| 6 mm² / flexible / > 80 N | |
| Tensile testing | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/Conductor type/Tensile force Setpoint/Actual value | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
| Mating and pulling forces | |
| Result | Exam passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 7 N |
| Pulling force per pole approx. | 4 N |
| Contact holder in use | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Contact holder in use Requirement >20 N | Exam passed |
| Durability of inscriptions | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Exam passed |
| Polarization and Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Exam passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Exam passed |
| Dimensional inspection | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Exam passed |
| Thermal Testing Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Tested number of poles | 4 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Temperature cycles | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Exam passed |
| Clearance and creepage distances Power | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Tracking resistance (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 800 V |
| Rated Surge Voltage (III/3) | 8 kV |
| Minimum air distance value - inhomogeneous field (III/3) | 8 mm |
| Minimum value of the creepage distance (III/3) | 10 mm |
| Rated insulation voltage (III/2) | 1000 V |
| Rated Surge Voltage (III/2) | 8 kV |
| Minimum value of the air distance - inhomogeneous field (III/2) | 8 mm |
| Minimum value of the creepage distance (III/2) | 8 mm |
| Rated insulation voltage (II/2) | 1000 V |
| Rated Surge Voltage (II/2) | 6 kV |
| Minimum value of the clearance - inhomogeneous field (II/2) | 5.5 mm |
| Minimum value of the creepage distance (II/2) | 5.5 mm |
| Clearance and creepage distances Signal | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Tracking resistance (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 160 V |
| Rated Surge Voltage (III/3) | 2.5 kV |
| Minimum air distance value - inhomogeneous field (III/3) | 1.5 mm |
| Minimum value of the creepage distance (III/3) | 2 mm |
| Rated insulation voltage (III/2) | 160 V |
| Rated Surge Voltage (III/2) | 2.5 kV |
| Minimum value of the air distance - inhomogeneous field (III/2) | 1.5 mm |
| Minimum value of the creepage distance (III/2) | 1.5 mm |
| Rated insulation voltage (II/2) | 320 V |
| Rated Surge Voltage (II/2) | 2.5 kV |
| Minimum value of the clearance - inhomogeneous field (II/2) | 1.5 mm |
| Minimum value of the creepage distance (II/2) | 1.6 mm |
| Vibration testing | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y and Z axis |
| Durability test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Standing Shock Stress at Sea Level | 7.3 kV |
| Contact resistance R1 | 0.42 mΩ |
| Contact resistance R2 | 0.46 mΩ |
| Mating cycles | 25 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Climatic testing | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion stress | 0.2 dm3SO2to 300 DM3/40 °C/1 cycle |
| Heat stress | 100 °C/168 h |
| Standing AC voltage | 3.31 kV |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging type | packed in carton |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 7.62 mm |
| Modular spacing connections (EF006827) | 7.62 mm |
| Rated current In (EF008250) | 41 A |
| Rated voltage (EF000228) | 1000 V |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.75 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 10 mm² |
| Type of electric connection (EF003961) | Other |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Other |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
