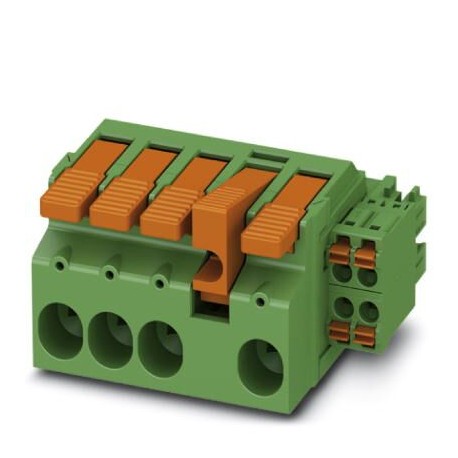

PHOENIX CONTACT LPCH 6/ 4+6-STL4-7,62 LPCH 6/ 4+6-STL4-7,62 1716989 PHOENIX CONTACT PCB hybrid connector, nominal current: 41 A, rated voltage (II.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPCH 6/ 4+6-STL4-7,62 1716989 PHOENIX CONTACT PCB hybrid connector, nominal current: 41 A, rated voltage (II..

LPCH 6/ 4+6-STL4-7,62

1716989

PHOENIX CONTACT

25 Pcs.

PCB hybrid connector, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 6 mm², number of positions: 10, pitch: 7.62 mm, connection method: Push-in spring connection, color: green, contact surface: Tin Hybrid connector for printed circuit board, nominal section: 6 mm², color: green, nominal current: 41 A, 8 A, nominal voltage (III/2): 1000 V, contact surface: Tin, contact type: Female, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, family of articles: LPCH 6/.. +6-STL, pitch: 7.62 mm, connection type: Push-in lever connection, driver/printed circuit board connection direction: 0 °, plug-in system: COMBICON PC 6 hybrid, lock: Socket lock, fixing type: Socket flange, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1716989
Packing unit1 pc
Minimum order quantity25 pc
GTIN4055626530444
Weight per Piece (excluding packing)37.600 g
Custom tariff number85366990
Country of originPL (Poland)

Drawings

Diagram

Diagram
Type: LPCH 6/...+...-STL...-7,62 with PCH 6/...+...-GL...-7,62

Back to top

Item properties

Brief article descriptionPCB hybrid connector
Plug-in systemPOWER COMBICON 6 Hybrid
Type of contactFemale connector
Range of articlesLPCH 6/..-STL
Pitch7.62 mm
3.81 mm
Number of positions10
Connection methodPush-in spring connection
LockingLatch mechanism/latching at position 4
Number of levels1
2
Number of connections10
Number of potentials10
Back to top

Electrical parameters

Nom. voltage1000 V
Back to top

Power connection capacity

Conductor cross section solid0.75 mm² ... 10 mm²
Conductor cross section flexible0.75 mm² ... 6 mm²
Conductor cross section AWG / kcmil18 ... 8
Conductor cross section flexible, with ferrule without plastic sleeve0.75 mm² ... 6 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.75 mm² ... 6 mm²
Cylindrical gauge a x b / diameter4.3 mm x 4.0 mm / 4.0 mm
Stripping length18 mm
Back to top

Connection capacity signal

Conductor cross section solid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil24 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1 mm²
Cylindrical gauge a x b / diameter2.4 mm x 1.5 mm / 1.5 mm
Stripping length10 mm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Back to top

Material data - housing

Insulating materialPA GF
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Back to top

Material data – actuating element

Insulating materialPA GF
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Back to top

Dimensions for the product

Length [ l ]48 mm
Width [ w ]51.73 mm
Height [ h ]35.65 mm
Pitch7.62 mm
Dimension a30.48 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package25
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Back to top

Termination and connection method

Conductor connection testThe stripped-off ends of the largest conductor can be completely inserted in the opening of the terminal point without using excessive force.
Test resultTest passed
Test – repeated connection and releaseIEC 60999-1:1999-11
Test passed
Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed
Back to top

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.75 mm² / solid / > 30 N
0.75 mm² / flexible / > 30 N
10 mm² / solid / > 90 N
6 mm² / flexible / > 80 N
Back to top

Mechanical tests according to standard

Visual examinationTest passed IEC 60512-1-1:2002-02
Dimensional testTest passed IEC 60512-1-2:2002-02
Resistance of markingTest passed IEC 60068-2-70:1995-12
ResultTest passed
SpecificationIEC 60512-13-2:2006-02
No. of cycles25
Insertion strength per pos. approx.7 N
Withdraw strength per pos. approx.4 N
Polarization and codingTest passed IEC 60512-13-5:2006-02
ResultTest passed
SpecificationIEC 60512-15-1:2008-05
Test force per pos.20 N
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Rated insulation voltage (III/3)800 V
Rated insulation voltage (III/2)1000 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Minimum clearance - inhomogeneous field (III/3)8 mm
Minimum clearance - inhomogeneous field (III/2)8 mm
Minimum clearance - inhomogeneous field (II/2)5.5 mm
Minimum creepage distance value (III/3)10 mm
Minimum creepage distance value (III/2)5 mm
Minimum creepage distance value (II/2)5 mm
Back to top

Electrical tests - Function

SpecificationIEC 60999-1:1999-11
Back to top

Temperature cycles

SpecificationIEC 60999-1:1999-11
Test current (minimum cross section)9 A DC
Test current (maximum cross section)41 A DC
Temperature cycles192
Back to top

Mechanical tests (A)

Insertion strength per pos. approx.7 N
Withdraw strength per pos. approx.4 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed
Back to top

Durability tests (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R10.42 mΩ
Insertion/withdrawal cycles25
Contact resistance R20.46 mΩ
Impulse withstand voltage at sea level7.3 kV
Power-frequency withstand voltage3.31 kV
Insulation resistance, neighboring positions
Back to top

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level7.3 kV
Power-frequency withstand voltage3.31 kV
Back to top

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeBack of hand safety with IP10 access probe
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440309
eCl@ss 8.027440309
eCl@ss 9.027440309
Back to top

ETIM

ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638
Back to top

ETIM for 1716989 Connectors (EC002638)
Feature Name Feature Value
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 7.62 mm
Modular spacing connections (EF006827) 7.62 mm
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 1000 V
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.75 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.75 mm²
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Connectable conductor cross section multi-wired (EF007343) 10 mm²
Type of electric connection (EF003961) Other
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Other
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
