View larger
Images are for illustrative purposes only. Please refer to data sheet for details

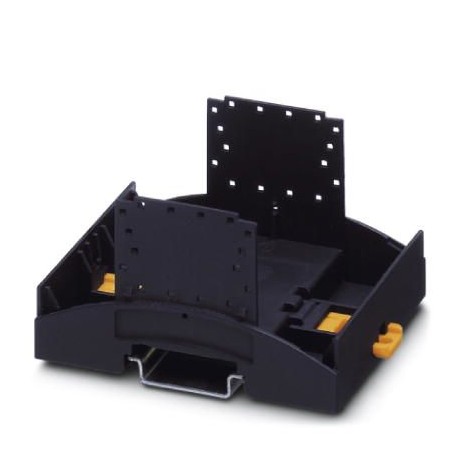

BC 71,6 UT HBUS BK 2896267 PHOENIX CONTACT Mounting base housing
BC 71,6 UT HBUS BK
2896267
PHOENIX CONTACT
10 Pcs.
Mounting base housing
Rail box for use in installation distributors according to DIN 43880, Lower part of the housing with base anchorage, width: 71.6 mm, height: 89.7 mm, depth: 48.9 mm, colour: black (9005), cross bridge: Bus connector for rail (optional), number of poles cross connector: 16
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2896267 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 699 (C-1-2013) |
| GTIN | 4046356096713 |
| Weight per Piece (excluding packing) | 41.000 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Mounting base housing |
|---|---|
| Type | BC 71,6 UT HBUS BK |
| Order No. | 2896267 |
| Housing type | Installation component housing |
| Type | Lower part |
Material data
| Color (RAL) | black (9005) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 71.6 mm |
| Height (EF000040) | 89.7 mm |
| Depth (EF000049) | 48.9 mm |
