View larger
Images are for illustrative purposes only. Please refer to data sheet for details

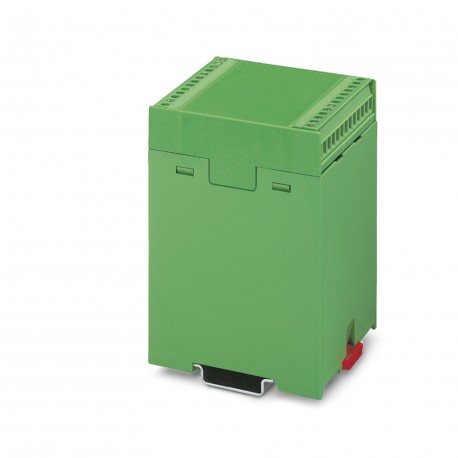

EG 67,5-G/ABS GN 2764292 PHOENIX CONTACT Electronic housing
EG 67,5-G/ABS GN
2764292
PHOENIX CONTACT
5 Pcs.
Electronic housing
Housing, Lower part of the housing, with fixing foot, without ventilation slits, width: 67.5 mm, height: 75 mm, color: green (6021), transverse bridging: without bus connector, number of poles transverse connector: not relevant
Component housing, Lower housing part, with snap-on foot, without vents, width: 67.5 mm, height: 75 mm, color: green (similar RAL 6021), cross connection: without bus connector, number of positions cross connector: not relevant
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Enclosure bottom part |
| Housing type | Component housing |
| Housing series | EG |
| Product family | EG..-G |
| Type | Lower housing part closed, housing cover necessary to complete the module |
| Number of positions | 26 |
| Max. number of positions | 0) |
| Type | Lower housing part, with snap-on foot |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Width | 67.5 mm |
| Height | 75 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | HB |
| Housing material | ABS |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
PCB data
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 67.5 mm |
| Height (EF000040) | 75 mm |
