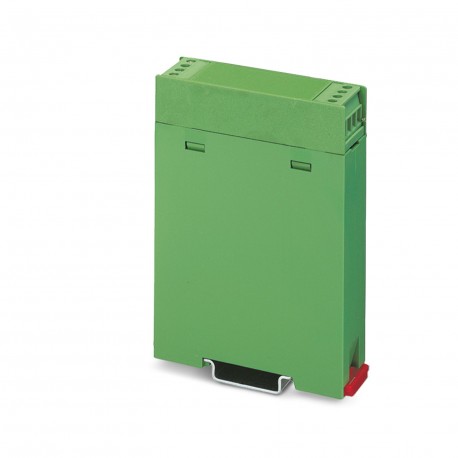

PHOENIX CONTACT EG 22,5-G/ABS GN EG 22,5-G/ABS GN 2764043 PHOENIX CONTACT Electronic housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EG 22,5-G/ABS GN 2764043 PHOENIX CONTACT Electronic housing

EG 22,5-G/ABS GN

2764043

PHOENIX CONTACT

10 Pcs.

Electronic housing Housing, Lower part of the housing, with fixing foot, without ventilation slits, width: 22.5 mm, height: 75 mm, color: green (6021), cross bridge: without bus connector, number of poles cross connector: not relevant Component housing, Lower housing part, with snap-on foot, without vents, width: 22.5 mm, height: 75 mm, color: green (similar RAL 6021), cross connection: without bus connector, number of positions cross connector: not relevant

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeEnclosure bottom part
Housing typeComponent housing
Housing seriesEG
Product familyEG..-G
TypeLower housing part closed, housing cover necessary to complete the module
Number of positions8
Max. number of positions0)
TypeLower housing part, with snap-on foot
Ventilation openings presentno
Data management status
Article revision00
Dimensions
Dimensional drawingidqztamrdt.jpg
Width22.5 mm
Height75 mm
PCB design
PCB thickness1.4 mm ... 1.8 mm
Material specifications
Color (Housing)green (RAL 6021)
Flammability rating according to UL 94HB
Housing materialABS
Surface characteristicsuntreated
Environmental and real-life conditions
Power dissipation single housing for 20 °C
Ambient temperature20 °C
Reduction factor1
Power dissipation single housing for 30 °C
Ambient temperature30 °C
Reduction factor0.8
Power dissipation single housing for 40 °C
Ambient temperature40 °C
Reduction factor0.62
Power dissipation single housing for 50 °C
Ambient temperature50 °C
Reduction factor0.47
Power dissipation single housing for 60 °C
Ambient temperature60 °C
Reduction factor0.3
Ambient conditions
Degree of protectionIP20
Max. IP code to attainIP20
Ambient temperature (operation)-40 °C ... 80 °C (depending on power dissipation)
Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 80 °C
PCB data
Thickness of the PCB1.4 mm ... 1.8 mm
Mounting
Mounting typeDIN rail mounting

ETIM for 2764043 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Material (EF002169) Other
Surface finishing (EF006569) Other
Colour (EF000007) Green
RAL-number (EF000116) 6021
Width (EF000008) 22.5 mm
Height (EF000040) 75 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
