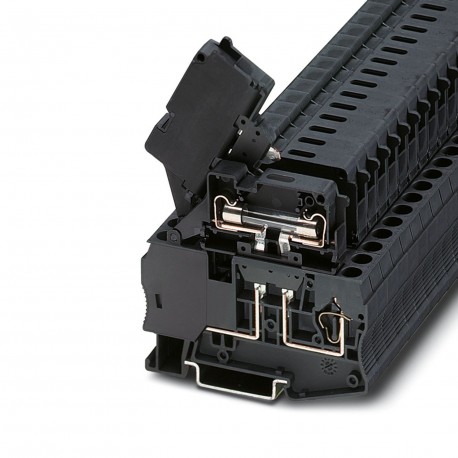

PHOENIX CONTACT ST 4-HESI (6,3X32) ST 4-HESI (6,3X32) 3036385 PHOENIX CONTACT Fuse modular terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ST 4-HESI (6,3X32) 3036385 PHOENIX CONTACT Fuse modular terminal block

ST 4-HESI (6,3X32)

3036385

PHOENIX CONTACT

50 Pcs.

Fuse modular terminal block Fuse terminal block, fuse type: Glass/ceramic/..., fuse type: G/6.3 x 32, nominal voltage: 400 V, nominal current: 10 A, connection type: Spring connection, 1st floor, Sizing cross-section: 1.5 mm², cross-section: 0.08 mm²- 6 mm², mounting class: NS 35/7.5, NS 35/15, color: black Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 6,3 x 32, nom. voltage: 400 V, nominal current: 10 A, connection method: Spring-cage connection, 1 level, Rated cross section: 1.5 mm2, cross section:  0.08 mm2- 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: black

Automation > Fuse terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFuse terminal block
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision07
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Fuse typeGlass / ceramics / ...
Rated surge voltage6 kV
Maximum power dissipation for nominal condition1.02 W
FuseG / 6,3 x 32
Maximum current with single arrangement10 A
Maximum power dissipationmax. 1.6 W (with single arrangement of the fuse terminal block in the event of overload)
max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload)
max. 4 W (with single arrangement of the fuse terminal block in the event of a short-circuit)
max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit)
Connection data
Number of connections per level2
Nominal cross section4 mm²
1 level
Stripping length8 mm ... 10 mm
Internal cylindrical gageA4
Connection in acc. with standardIEC 60947-7-3
Conductor cross section rigid0.08 mm² ... 6 mm²
Cross section AWG28 ... 10 (converted acc. to IEC)
Conductor cross section flexible0.08 mm² ... 4 mm²
Conductor cross section, flexible [AWG]28 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.14 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.14 mm² ... 4 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Nominal current10 A
Maximum load current10 A (the current is determined by the fuse used)
Nominal voltage400 V
Nominal cross section1.5 mm²
Dimensions
Width8.2 mm
Height76.5 mm
Depth on NS 35/7,569 mm
Depth on NS 35/1576.5 mm
Material specifications
Colorblack (RAL 9005)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelNo
Environmental and real-life conditions
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 1, class B, body mounted
Frequencyf1= 5 Hz to f2= 150 Hz
ASD level0.964 (m/s²)²/Hz
Acceleration0.58g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-3
Mounting
Mounting typeNS 35/7,5
NS 35/15

ETIM for 3036385 Terminal blocks (EC000899)
Feature Name Feature Value
Type of fuse insert (EF002530) G-fuse 6.3x32 mm
Type of fuse holder (EF002531) Other
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.08 mm²
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 400 V
Type of electrical connection 1 (EF002526) Spring clamp connection
Type of electrical connection 2 (EF002527) Clip connection
Number of levels (EF002659) 1
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 8.15 mm
Height (EF000040) 76.5 mm
Depth (EF000049) 67.45 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
