View larger
Images are for illustrative purposes only. Please refer to data sheet for details

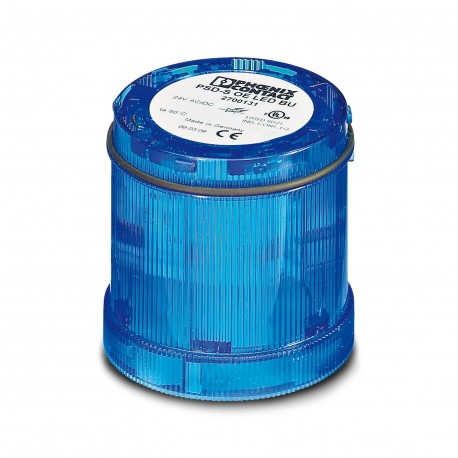

PSD-S OE LED BU 2700131 PHOENIX CONTACT LED permanent light element, 24 V AC/DC, blue
PSD-S OE LED BU
2700131
PHOENIX CONTACT
1 Pcs.
LED permanent light element, 24 V AC/DC, blue
Automation > Optical module for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Diameter | 70 mm |
|---|---|
| Height | 65.5 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Degree of protection | IP65, when installed or with cover |
General
| Material | Polycarbonate PC |
|---|---|
| Calotte color | blue |
| Weight | 58 g |
| Mounting position | any |
| Assembly instructions | Rubber seal pre-installed for each element |
Electrical data
| Input voltage | 24 V AC/DC |
|---|---|
| Maximum inrush current | max. 500 mA |
| Current consumption | 25 mA |
| Service life, electrical | max. 100,000 h |
| Operating time | 100 % |
| Optical signal type | Permanent light |
Approvals / conformities
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Blue |
| Outer diameter (EF000015) | 70 mm |
| Operating voltage AC 50 Hz (EF008206) | 24 V |
| Operating voltage AC 60 Hz (EF008207) | 24 V |
| Operating voltage DC (EF008208) | 24 V |
| Voltage type (EF000187) | AC/DC |
| Lamp type (EF002423) | LED |
| Housing colour (EF000136) | Blue |
| Degree of protection (IP) (EF005474) | IP65 |
