View larger
Images are for illustrative purposes only. Please refer to data sheet for details

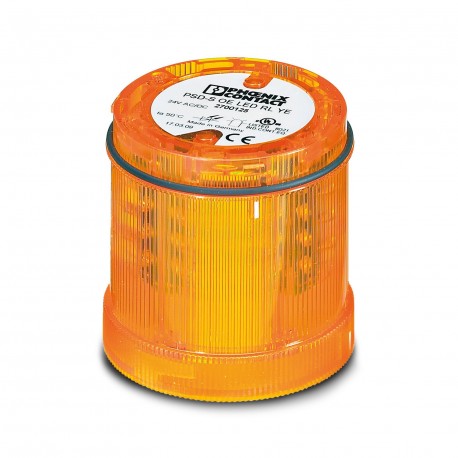

PSD-S OE LED RL YE 2700125 PHOENIX CONTACT Optical element
PSD-S OE LED RL YE
2700125
PHOENIX CONTACT
1 Pcs.
Optical element
Circumferential LED light element, 24VAC/DC, yellow
Automation > Optical module for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2700125 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 501 (C-6-2017) |
| GTIN | 4046356491549 |
| Weight per Piece (excluding packing) | 81.000 g |
| Custom tariff number | 85318070 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Degree of protection | IP65, when installed or with cover |
General
| Material | Polycarbonate PC |
|---|---|
| Calotte color | yellow |
| Weight | 65 g |
| Mounting position | any |
| Assembly instructions | Rubber seal pre-installed for each element |
Electrical data
| Input voltage | 24 V AC/DC |
|---|---|
| Maximum inrush current | max. 500 mA |
| Current consumption | ≤ 40 mA |
| Service life, electrical | max. 100,000 h |
| Operating time | 100 % |
| Optical signal type | LED rotating light |
| Signal frequency | approx. 2 Hz |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027143203eCl@ss 4.127143203eCl@ss 5.027371220eCl@ss 5.127371200eCl@ss 6.027371200eCl@ss 7.027371220eCl@ss 8.027371220eCl@ss 9.027371220
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Yellow |
| Outer diameter (EF000015) | 70 mm |
| Operating voltage AC 50 Hz (EF008206) | 24 V |
| Operating voltage AC 60 Hz (EF008207) | 24 V |
| Operating voltage DC (EF008208) | 24 V |
| Voltage type (EF000187) | AC/DC |
| Lamp type (EF002423) | LED |
| Housing colour (EF000136) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
