View larger
Images are for illustrative purposes only. Please refer to data sheet for details

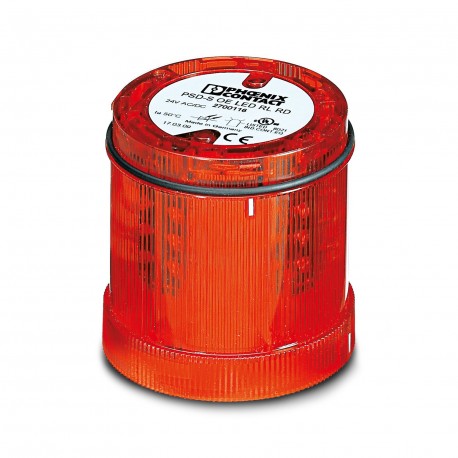

PSD-S OE LED RL RD 2700116 PHOENIX CONTACT Optical element
PSD-S OE LED RL RD
2700116
PHOENIX CONTACT
1 Pcs.
Optical element
LED circumferential light element, 24VAC/DC, red
LED rotating light element, 24 V AC/DC, red
Automation > Optical module for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
Product properties
| Product type | Optical element |
| Area of application | Signal tower |
Electrical properties
| Maximum power dissipation for nominal condition | 0.96 W |
| General | |
| Input voltage | 24 V AC/DC |
| Maximum inrush current | max. 500 mA |
| Current consumption | ≤ 40 mA |
| Source of light type | LED |
| Operating time | 100 % |
| Service life electrical | max. 100,000 h |
| Optical signal type | LED rotating light |
| Signal frequency | approx. 2 Hz |
Dimensions
| Dimensional drawing |  |
| Height | 65.5 mm |
| Diameter | 70 mm |
Material specifications
| Calotte color | red |
| Material | Polycarbonate PC |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 (when installed or with end cover) |
| Ambient temperature (operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting type | Plug-in mounting |
| Assembly note | Rubber seal pre-installed for each element |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Red |
| Outer diameter (EF000015) | 70 mm |
| Operating voltage AC 50 Hz (EF008206) | 24 V |
| Operating voltage AC 60 Hz (EF008207) | 24 V |
| Operating voltage DC (EF008208) | 24 V |
| Voltage type (EF000187) | AC/DC |
| Lamp type (EF002423) | LED |
| Housing colour (EF000136) | Red |
| Degree of protection (IP) (EF005474) | IP65 |
