View larger
Images are for illustrative purposes only. Please refer to data sheet for details

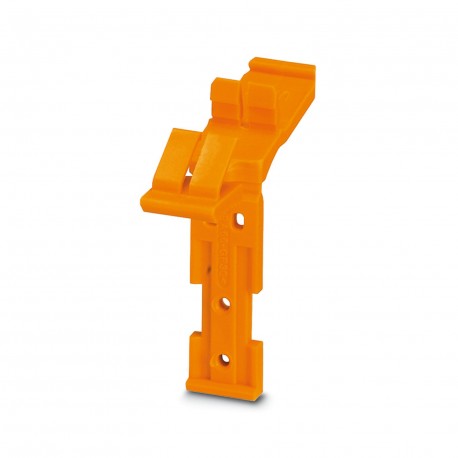

UPRZ 3045570 PHOENIX CONTACT Latching
UPRZ
3045570
PHOENIX CONTACT
50 Pcs.
Latching
Locking, length: 39.8 mm, width: 10 mm, number of poles: 2, color: orange
Latching, width: 10 mm, height: 39.8 mm, number of positions: 2, color: orange
Automation > Installation clamp for meters
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Mounting material |
| Number of positions | 2 |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 10 mm |
| Height | 39.8 mm |
Material specifications
| Color | orange (RAL 2003) |
| Material | PA-GF |
| Flammability rating according to UL 94 | V2 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
