PHOENIX CONTACT CES-LTPG-GY-33 CES-LTPG-GY-33 0801707 PHOENIX CONTACT Cable sleeve View larger
Images are for illustrative purposes only. Please refer to data sheet for details

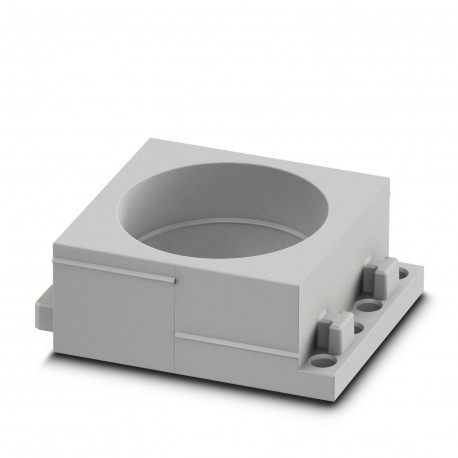

CES-LTPG-GY-33 0801707 PHOENIX CONTACT Cable sleeve

CES-LTPG-GY-33

0801707

PHOENIX CONTACT

10 Pcs.

Cable sleeve Cable grommet, large, number of conductors: 1, type: Round cable, crimped, outer diameter of cable: 1x 32 mm ... 33 mm, material: SEBS (halogen-free), colour: grey, length: 53 mm, width: 39 mm, height: 17 mm Cable sleeve, large, no. of conductors: 1, type: Round cable, slotted, external cable diameter: 1x 32 mm ... 33 mm, material: SEBS (halogen-free), color: gray, length: 53 mm, width: 39 mm, height: 17 mm

Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeCable sleeve
No. of conductors1
Data management status
Article revision00
Dimensions
Dimensional drawingbfnucckfww.jpg
Width39 mm
Height17 mm
Length53 mm
Material specifications
MaterialSEBS (halogen-free)
Flammability rating according to UL 94V0
Cable/line
External cable diameter1x 32 mm ... 33 mm
Characteristics
Seal sizelarge
Design, FormatRound cable
Design, Cable sealslotted
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP54
Ambient temperature (operation)-40 °C ... 80 °C (static)
