View larger
Images are for illustrative purposes only. Please refer to data sheet for details

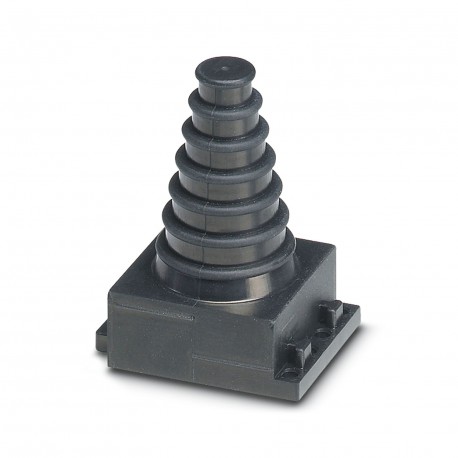

CES-LRC-BK 0801719 PHOENIX CONTACT Cable sleeve
CES-LRC-BK
0801719
PHOENIX CONTACT
10 Pcs.
Cable sleeve
Cable grommet, large, number of conductors: 1, type: Round cable, closed, outer diameter of cable: 1x 7 mm ... 24 mm, material: NBR, color: black, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Cable sleeve, large, no. of conductors: 1, type: Round cable, closed, external cable diameter: 1x 7 mm ... 24 mm, material: NBR, color: black, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable sleeve |
| No. of conductors | 1 |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Width | 19.5 mm |
| Height | 17 mm |
| Length | 29.5 mm |
Material specifications
| Material | NBR |
Cable/line
| External cable diameter | 1x 7 mm ... 24 mm |
Characteristics
| Seal size | large |
| Design, Format | Round cable |
| Design, Cable seal | closed |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP54 |
| IP65 (When using cable ties in combination with the installation direction to the side or downwards) | |
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
Mounting
| Assembly note | IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel and use of a 3.6 mm wide cable binder (e.g., item 3240744). |
