View larger
Images are for illustrative purposes only. Please refer to data sheet for details

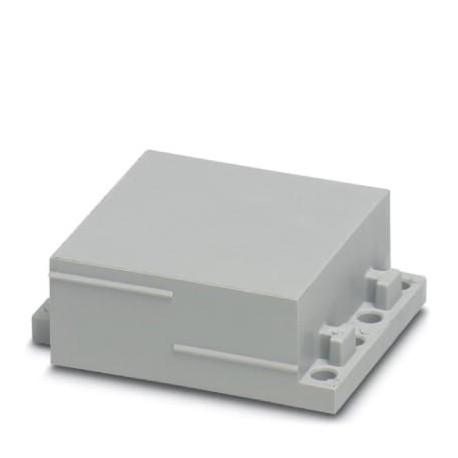

CES-LTPG-GY 0801716 PHOENIX CONTACT Blind sleeve
CES-LTPG-GY
0801716
PHOENIX CONTACT
10 Pcs.
Blind sleeve
Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0801716 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 688 (C-2-2017) |
| GTIN | 4046356675178 |
| Weight per Piece (excluding packing) | 34.030 g |
| Custom tariff number | 85472000 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP54 (Observe the assembly instructions) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C (static) |
General
| Product description | Blind sleeves seal feed-through sections that are not required in CES sealing frames |
|---|---|
| No. of conductors | 0 |
| Material | SEBS |
| SEBS (halogen-free) | |
| Flammability rating according to UL 94 | V0 |
| Color | gray |
| Installation instructions | IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
