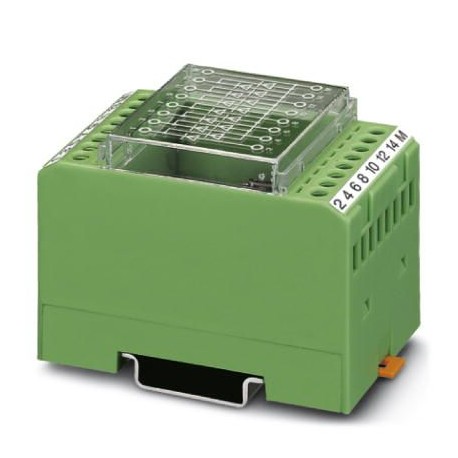

EMG 45-DIO14M/LP 2950132 PHOENIX CONTACT Diode block
EMG 45-DIO14M/LP
2950132
PHOENIX CONTACT
1 Pcs.
Diode block
Module for lamp testing, 2 diodes with common cathode, respectively: 7-pair execution, with common activation
Automation > Surge protection module
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2950132 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 281 (C-5-2017) |
| GTIN | 4017918083984 |
| Weight per Piece (excluding packing) | 87.000 g |
| Custom tariff number | 85411000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
General
| Peak reverse voltage per diode | 1300 V |
|---|---|
| Reverse current per diode | ≤ 5 µA |
| Conducting state voltage per diode | approx. 0.8 V |
| Conducting state current per diode | 0.7 A (with single load) |
| 0.2 A (with simultaneous loads) | |
| Standards/specifications | DIN EN 50178 |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Connection method | Screw connection |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Other |
| Voltage type (operating voltage) (EF005294) | AC |
| Operating voltage AC 50 Hz (EF008206) | 250 V |
| Operating voltage AC 60 Hz (EF008207) | 250 V |
| With LED indication (EF005950) | No |
