View larger
Images are for illustrative purposes only. Please refer to data sheet for details

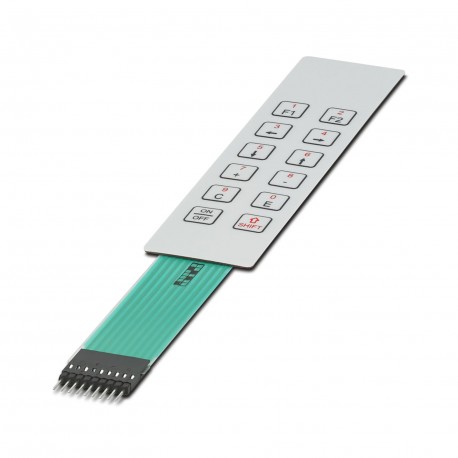

KP HCS T-MIC K12 C3 P9 2203567 PHOENIX CONTACT Accessories
KP HCS T-MIC K12 C3 P9
2203567
PHOENIX CONTACT
1 Pcs.
Accessories
Self-adhesive membrane keyboard, silver control technology, 12 keys, with highlight, 3 colors, connection cable: 88.5 mm, with crimped female connector, pitch: 2.54 mm, operating temperature: -20 °C ... 70 °C
Membrane keypad, self-adhesive, silver conduction technology, 12 keys, embossed, 3 colors, connecting cable: 88.5 mm, with crimp female connector, pitch: 2.54 mm, operating temperature: -20°C ... 70°C
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Membrane keypad |
| Housing type | Handheld housing |
| Housing series | HCS |
| Product family | HCS |
| Number of positions | 9 |
| Pitch | 2.54 mm |
| Technology | Conductive silver/graphite (T6/4 Cu/Ag) |
| Embossing | Dome embossing 10 x 10 mm |
| Number of socket pins | 9 |
| Number of keys | 12 (2 x 6) |
| Data management status | |
| Article revision | 01 |
Dimensions
| Length | 88.5 mm (Membrane cable) |
| Pitch | 2.54 mm |
| Dimensions | 38 mm x 140 mm |
Material specifications
| Housing material | Polyester |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Mounting
| Mounting type | adhesive |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
