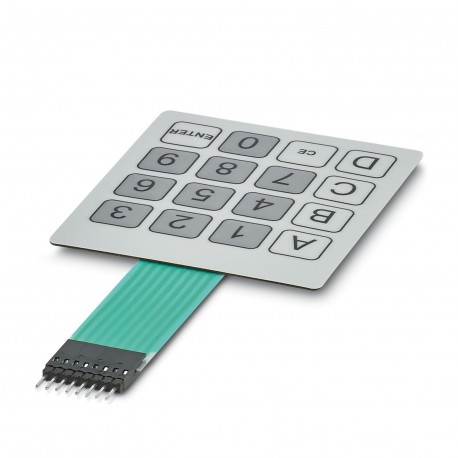

KP HCS C-MED K16 C3 P8 2203568 PHOENIX CONTACT Accessories
KP HCS C-MED K16 C3 P8
2203568
PHOENIX CONTACT
1 Pcs.
Accessories
Self-adhesive membrane keyboard, silver control technology, 16 keys, with highlight, 3 colors, connection cable: 62 mm, with crimped female connector, pitch: 2.54 mm, operating temperature: -20 °C ... 70 °C
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2203568 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626474014 |
| Weight per Piece (excluding packing) | 11.100 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Product properties
| Type | KP HCS C-MED K16 C3 P8 |
|---|---|
| Order No. | 2203568 |
| Mounting type | adhesive |
| Number of positions | 8 |
| Number of keys | 16 |
| Number of colors | 3 |
| Number of socket pins | 8 |
| Technology | Conductive silver technology |
| Embossing | Dome embossing 11 x 11 mm |
Ambient conditions
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
