View larger
Images are for illustrative purposes only. Please refer to data sheet for details

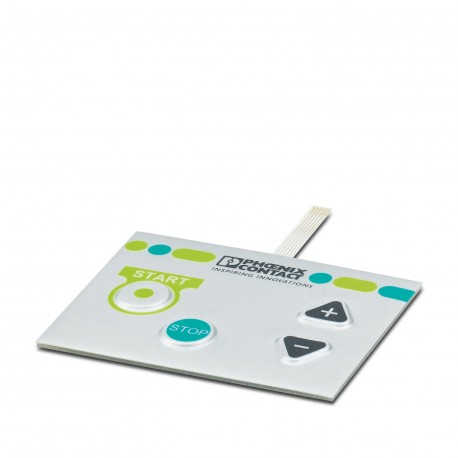

KP HC-ALU 100 K4 C4 P6 2203574 PHOENIX CONTACT Membrane keypad, self-adhesive, copper conduction technology,..
KP HC-ALU 100 K4 C4 P6
2203574
PHOENIX CONTACT
1 Pcs.
Membrane keypad, self-adhesive, copper conduction technology, 4 keys, embossed, 4 colors, connection cable: 47.3 mm, RM 1.0 mm, operating temperature -20°C ... 70°C
Self-adhesive membrane keyboard, copper control technology, 4 keys, with highlight, 4 colors, connection cable: 47.3mm, pitch: 1.0mm, operating temperature: 0°C... 45°C
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Membrane keypad, self-adhesive, copper conduction technology, 4 keys, embossed, 4 colors, connection cable: 47.3 mm, RM 1.0 mm, operating temperature -20°C ... 70°C
Key Commercial Data
| Orderkey | 2203574 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626485270 |
| Weight per Piece (excluding packing) | 15.200 g |
| Custom tariff number | 85340019 |
| Country of origin | HU (Hungary) |
Product properties
| Type | KP HC-ALU 100 K4 C4 P6 |
|---|---|
| Order No. | 2203574 |
| Mounting type | adhesive |
| Number of positions | 4 |
| Number of keys | 4 |
| Number of colors | 4 |
| Number of socket pins | 6 |
| Technology | Conductive silver technology |
| Embossing | Dome embossing 11 x 11 mm |
Dimensions
| Dimensions | 95 mm x 72 mm |
|---|---|
| Pitch | 1 mm |
| Length | 47.3 mm (Membrane cable) |
Ambient conditions
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C |
Packaging details
| Pieces per package | 1 |
|---|---|
| Denomination packing units | Pcs. |
Classifications
eCl@ss
| eCl@ss 5.1 | 27180506 |
|---|---|
| eCl@ss 6.0 | 27180800 |
| eCl@ss 7.0 | 27182702 |
| eCl@ss 8.0 | 27182702 |
| eCl@ss 9.0 | 27182702 |
ETIM
| ETIM 5.0 | EC001031 |
|---|---|
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
