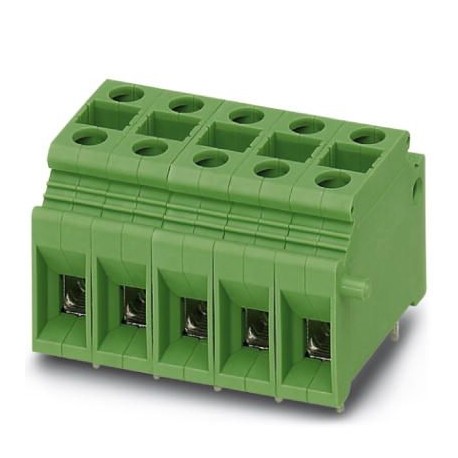

PHOENIX CONTACT KDS10/SO-7 NZ KDS10/SO- 7 NZ 1990591 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KDS10/SO- 7 NZ 1990591 PHOENIX CONTACT PCB terminal block

KDS10/SO-7 NZ

1990591

PHOENIX CONTACT

10 Pcs.

PCB terminal block Printed circuit board terminal block, nominal current: 76 A, nominal voltage (III/2): 320 V, nominal cross-section: 10 mm², number of potentials: 7, number of rows: 1, number of poles per row: 7, article family: KDS10, pitch: 10 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.3 mm, number of solder pins per potential: 4, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1990591
Packing unit10 pc
Minimum order quantity10 pc
GTIN4017918953454
Weight per Piece (excluding packing)111.670 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]36.8 mm
Pitch10 mm
Dimension a60 mm
Height29 mm
Solder pin [P]4.3 mm
Hole diameter1.4 mm

General

Range of articlesKDS10
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Nominal cross section10 mm²
Solder pin surface
Internal cylindrical gageB6
Stripping length12 mm
Number of positions7
Screw threadM4
Tightening torque, min1.2 Nm
Tightening torque max1.5 Nm

Connection data

Conductor cross section AWG min.20
Conductor cross section AWG max.6
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.4 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.4 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.6 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
