PHOENIX CONTACT KDS 3-SI GY KDS 3-SI GY 1077319 PHOENIX CONTACT KDS 3-SI GY 1077319 View larger

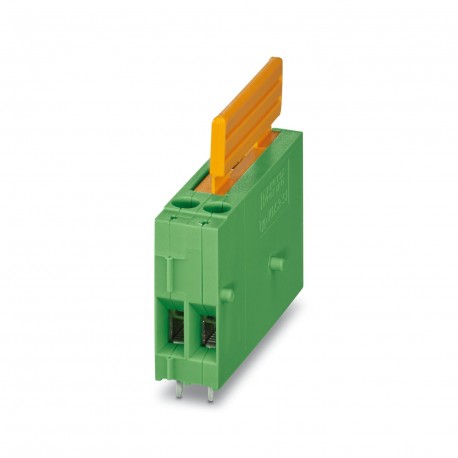

Images are for illustrative purposes only. Please refer to data sheet for details

KDS 3-SI GY 1077319 PHOENIX CONTACT KDS 3-SI GY 1077319

KDS 3-SI GY

1077319

PHOENIX CONTACT

1000 Pcs.

KDS 3-SI GY - 1077319 Terminal block for printed circuit board, rated current: 6.3 A, rated voltage (III/2): 320 V, rated section: 2.5 mm², number of rows: 1, number of poles per row: 1, article family: KDS 3-SI, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping shape: L Longitudinal slot, Mounting: Wave Soldering, Conductor/PCB Connection Direction: 0°, Color: Grey, Pin Arrangement: Linear Pin Arrangement, Pin Length [P]: 3.5mm, Number of Solder Pins per Potential: 2, Packaging Type: Boxed Packed Printed circuit board terminal, nominal current: 6.3 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm2, number of rows: 1, number of positions per row: 1, product range: KDS 3-SI, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: gray, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePrinted circuit board terminal
Product familyKDS 3-SI
Product lineCOMBICON Terminals M
Number of positions1
Pitch5.08 mm
Number of rows1
Pin layoutLinear pinning
Solder pins per potential2
Data management status
Article revision00
Electrical properties
Nominal current IN6.3 A
Nominal voltage UN320 V
Rated voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
Connection data
Connection technology
TypePCB terminal block can be aligned in rows + fuse terminal block
Nominal cross section2.5 mm²
Conductor connection
Connection methodScrew connection with tension sleeve
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 0.75 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Stripping length8 mm
Drive form screw headSlotted (L)
Tightening torque0.5 Nm ... 0.6 Nm
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)
Material data - housing
Color (Housing)gray (7042)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V2
Dimensions
Dimensional drawingzswbwfibns.jpg
Pitch5.08 mm
Width [w]5.08 mm
Height [h]40.5 mm
Length [l]27 mm
Installed height37 mm
Solder pin length [P]3.5 mm
Pin dimensions1.1 x 0.8 mm
PCB design
Hole diameter1.4 mm
Electrical tests
Air clearances and creepage distances
Insulating material groupI
Rated insulation voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 1077319 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 40.5 mm
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 6.3 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V2
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
