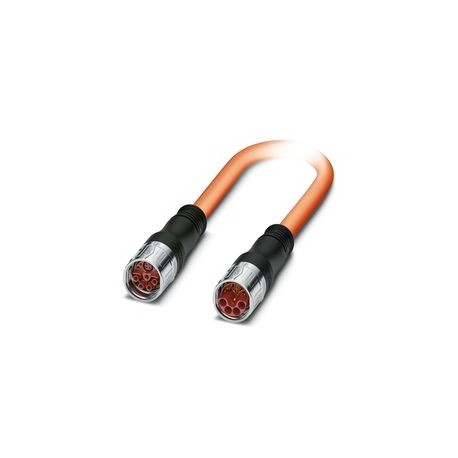

PHOENIX CONTACT K-8E-M23F8/10,0-H00/M23F8-C5-S K-8E-M23F8/10,0-H00/M23F8-C5-S 1508140 PHOENIX CONTACT Plug-in connector coated with plastic on both sides, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K-8E-M23F8/10,0-H00/M23F8-C5-S 1508140 PHOENIX CONTACT Plug-in connector coated with plastic on both sides, ..

K-8E-M23F8/10,0-H00/M23F8-C5-S

1508140

PHOENIX CONTACT

50 Pcs.

Plug-in connector coated with plastic on both sides, series: KSH, M23-Female, straight coated by plastic extrusion, number of poles: 4+4+4+PE, lock type: SPEEDCON, cable length: 10 m, shielded: yes, outer sheath color: orange RAL 2003 Plastic coated cable plug Cable plug in molded plastic

Cables > Power cable less 1 kV, for moving application
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSignal and power cable

ETIM for 1508140 Cable (EC003250)
Feature Name Feature Value
AWG size (EF011789) Other
Screen over stranding element (EF001623) None
With protective conductor (EF007468) No
Suspension element (EF001794) Other
Torsion resistant (EF001687) No
Low smoke according to EN IEC 61034-2 (EF003799) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
