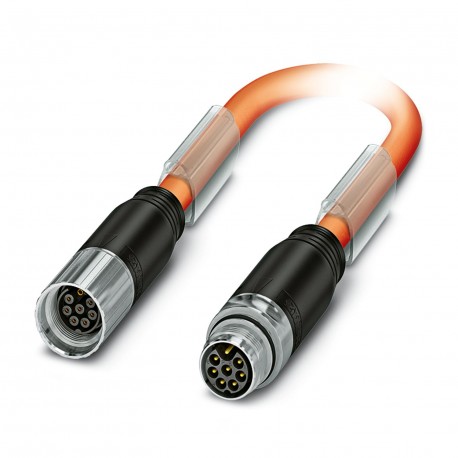

K-7E-M17 M9/2,0-D00/M17 F8 1624787 PHOENIX CONTACT Connector in molded plastic on both sides
K-7E-M17 M9/2,0-D00/M17 F8
1624787
PHOENIX CONTACT
2 Pcs.
Connector in molded plastic on both sides
Plug-in connector coated with plastic on both sides, series: KST, M17-Female, straight coated by plastic extrusion, number of poles: 7+PE, Lock type: Screw lock, to M17-Male, straight coated by plastic extrusion, number of poles: 7+PE, cable length: 2 m, shielded: yes, outer sheath color: orange RAL 2003, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1245262
Connectors coated with plastic by moulding on both sides, series: KST, M17-Female, plastic overmoulded straight, number of poles: 7+PE, locking type: Screw locking, on M17-Plug, plastic overmoulded straight, number of poles: 7+PE, cable length: 2 m, shielded: yes, outer sheath colour: orange RAL 2003, Alternative product according to RoHS II without exception 6c (Pb < 0.1 %) Art. No.: 1245262
Cables > Power cable less 1 kV, for moving application
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1624787 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 2 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 225 (C-2-2017) |
| GTIN | 4046356637305 |
| Weight per Piece (excluding packing) | 450.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Connector specifications
| Type | straight plastic-sheathed |
|---|---|
| Housing material | Zinc die-cast |
| Thread type | M17 |
| Locking type | Screw locking |
| Degree of protection | IP67, when in locked state |
| Number of positions | 7+PE |
| Direction of rotation | Standard |
| Type of contact | Socket |
| Insertion/withdrawal cycles | 50 |
| Contact resistance | < 0.3 mΩ |
| Max. current | 14 A |
| Voltage | 630 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Cable specifications
| Type of cable | 9YSLC11Y-JZ |
|---|---|
| Shielded | yes |
| Cable structure | 4 x 0.75 mm² + 2 x 2 x 0.34 mm² StC |
| Cable structure (AWG) | 19 AWG/4c + 22 AWG/1pr + 22 AWG/1pr |
| External cable diameter | 10.7 mm |
| Outer sheath, material | PUR |
| Material wire insulation | TPM |
| External sheath, color | orange RAL 2003 |
| Nominal voltage, cable | 500 V |
| Test voltage | 4 kV |
| Rated current | 12 A |
| Smallest bending radius, fixed installation | 54 mm |
| Smallest bending radius, movable installation | 81 mm |
| Ambient temperature for fixed installation | -40 °C ... 90 °C |
| Ambient temperature for flexible installation | -30 °C ... 90 °C |
Connector specifications (second page)
| Type | straight plastic-sheathed |
|---|---|
| Housing material | Zinc die-cast |
| Thread type | M17 |
| Degree of protection | IP67, when in locked state |
| Number of positions | 7+PE |
| Direction of rotation | Standard |
| Type of contact | Pin |
| Insertion/withdrawal cycles | 50 |
| Contact resistance | < 0.3 mΩ |
| Max. current | 14 A |
| Voltage | 630 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.127060106eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027062000eCl@ss 7.027062011eCl@ss 8.027062011eCl@ss 9.027062011
| Feature Name | Feature Value |
|---|---|
| AWG size (EF011789) | Other |
| Screen over stranding element (EF001623) | None |
| With protective conductor (EF007468) | No |
| Suspension element (EF001794) | Other |
| Torsion resistant (EF001687) | No |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
