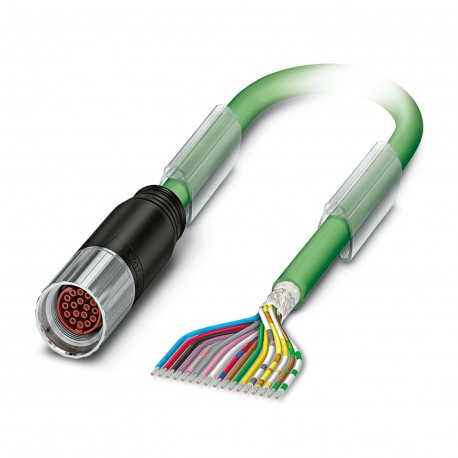

K-17 OE/2,0-E01/M17 F8 1624780 PHOENIX CONTACT Cable plug in molded plastic

K-17-OE/2,0-E01/M17 F8

1624780

PHOENIX CONTACT

2 Pcs.

Cable plug in molded plastic Plastic coated cable plug, M17-Female, straight coated by plastic extrusion, number of poles: 17, Lock type: Screw lock, cable length: 2 m, shielded: yes, outer sheath color: green, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1261279 Cable plug in molded plastic, M17-Socket, Straight, plastic molded, number of positions: 17, type of locking: Screw locking mechanism, cable length: 2 m, shielded: yes, color of outer sheath: green, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1261279

Cables > Power cable less 1 kV, for moving application
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Safety note
Safety note• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50 V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Only use tools recommended by Phoenix Contact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product properties
Product typeSignal and power cable
Data management status
Article revision13
Connector
Connector specifications
TypeStraight, plastic molded
Housing materialZinc die-cast
Thread typeM17
Type of lockingScrew locking mechanism
Degree of protectionIP67, when in locked state
No. of pos.17
Direction of rotationStandard
Contact switching typeSocket
Insertion/withdrawal cycles50
Contact resistance< 0.3 mΩ
Max. current3.6 A
Voltage48 V AC
74 V DC
Overvoltage categoryIII
Degree of pollution3
Rated surge voltage1.5 kV
Ambient temperature (operation)-40 °C ... 105 °C
Cable specifications
Cable typeSSLC11Y
Shieldedyes
Cable structure3 x 2 x 0.14 mm² + 2 x 0.5 mm² + 4 x 0.14 mm² + 4 x 0.22 mm²
Cable structure (AWG)26 AWG/3pr + 20 AWG/2c + 26 AWG/4c + 24 AWG/4c
External cable diameter9.40 mm
Outer sheath, materialTPU
Material wire insulationTPU
External sheath, colorgreen
Nominal voltage, cable30 V
Test voltage0.5 kV
Rated current9 A
Smallest bending radius, fixed installation38 mm
Smallest bending radius, movable installation94 mm
Ambient temperature (operation) for fixed installation-30 °C ... 80 °C
Ambient temperature (operation) for flexible installation-30 °C ... 60 °C
Electrical properties
Nominal current IN3.6 A
Cable/line
Cable length2 m

ETIM for 1624780 Cable (EC003250)
Feature Name Feature Value
AWG size (EF011789) Other
Screen over stranding element (EF001623) None
With protective conductor (EF007468) No
Suspension element (EF001794) Other
Torsion resistant (EF001687) No
Low smoke according to EN IEC 61034-2 (EF003799) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
