> PHOENIX CONTACT > Field Device Connectors (FDC) > 1624778

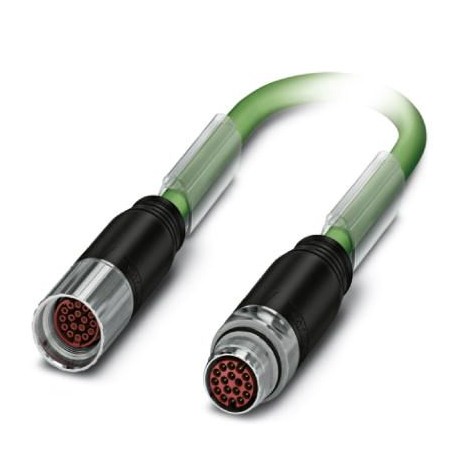

PHOENIX CONTACT K-17-M17 M9/2,0-E01/M17 F8 K-17-M17 M9/2,0-E01/M17 F8 1624778 PHOENIX CONTACT Connector in molded plastic on both sides View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K-17-M17 M9/2,0-E01/M17 F8 1624778 PHOENIX CONTACT Connector in molded plastic on both sides

K-17-M17 M9/2,0-E01/M17 F8

1624778

PHOENIX CONTACT

2 Pcs.

Connector in molded plastic on both sides Plug-in connector coated with plastic on both sides, M17-Female, straight coated by plastic extrusion, number of poles: 17, Lock type: Screw lock, to M17-Male, straight coated by plastic extrusion, number of poles: 17, cable length: 2 m, shielded: yes, outer wrap color: green, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1261272

Cables > Power cable less 1 kV, for moving application
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1624778
Packing unit1 pc
Minimum order quantity2 pc
NoteMade to Order (non-returnable)
Catalog pagePage 222 (C-2-2017)
GTIN4046356637275
Weight per Piece (excluding packing)36.000 g
Custom tariff number85444290
Country of originDE (Germany)

Conductor length2 m
Nominal current3.6 A

Connector specifications

Typestraight plastic-sheathed
Housing materialZinc die-cast
Thread typeM17
Locking typeScrew locking
Degree of protectionIP67, when in locked state
Number of positions17
Direction of rotationStandard
Type of contactSocket
Insertion/withdrawal cycles50
Contact resistance< 0.3 mΩ
Max. current3.6 A
Voltage60 V
Overvoltage categoryIII
Degree of pollution3
Rated surge voltage1.5 kV
Ambient temperature (operation)-40 °C ... 105 °C

Cable specifications

Type of cableSSLC11Y
Shieldedyes
Cable structure3 x 2 x 0.14 mm² + 2 x 0.5 mm² + 4 x 0.14 mm² + 4 x 0.22 mm²
Cable structure (AWG)26 AWG/3pr + 20 AWG/2c + 26 AWG/4c + 24 AWG/4c
External cable diameter9.4 mm
Outer sheath, materialTPU
Material wire insulationTPU
External sheath, colorgreen
Nominal voltage, cable30 V
Test voltage0.5 kV
Rated current9 A
Smallest bending radius, fixed installation38 mm
Smallest bending radius, movable installation94 mm
Ambient temperature for fixed installation-30 °C ... 80 °C
Ambient temperature for flexible installation-30 °C ... 60 °C

Connector specifications (second page)

Typestraight plastic-sheathed
Housing materialZinc die-cast
Thread typeM17
Degree of protectionIP67, when in locked state
Number of positions17
Direction of rotationStandard
Type of contactPin
Insertion/withdrawal cycles50
Contact resistance< 0.3 mΩ
Max. current3.6 A
Voltage60 V
Overvoltage categoryIII
Degree of pollution3
Rated surge voltage1.5 kV
Ambient temperature (operation)-40 °C ... 105 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1624778 Cable (EC003250)
Feature Name Feature Value
AWG size (EF011789) Other
Screen over stranding element (EF001623) None
With protective conductor (EF007468) No
Suspension element (EF001794) Other
Torsion resistant (EF001687) No
Low smoke according to EN IEC 61034-2 (EF003799) No
