View larger
Images are for illustrative purposes only. Please refer to data sheet for details

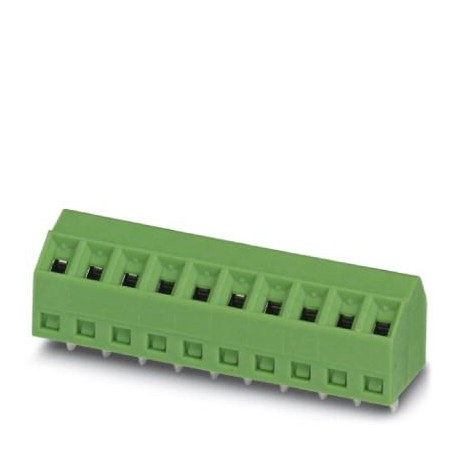

SMKDS 1/ 4-3,5 BD+/- 1712659 PHOENIX CONTACT PCB terminal block
SMKDS 1/ 4-3,5 BD+/-
1712659
PHOENIX CONTACT
1000 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 10 A, dimensioning voltage (III/2): 200 V, nominal section: 1 mm², Number of potentials: 4, Number of rows: 1, Number of poles per row: 4, family of articles: SMKDS 1, pitch: 3.5 mm, type of connection: Screw connection with traction capsule, mounting: Wave soldering, Driver/PCB connection direction: 35°, Color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5mm, Packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 10 mm |
|---|---|
| Pitch | 3.5 mm |
| Dimension a | 10.5 mm |
| Width [ w ] | 7.5 mm |
| Height | 9.5 mm |
| Height [ h ] | 13 mm |
| Solder pin [P] | 3.5 mm |
| Hole diameter | 1.1 mm |
General
| Range of articles | SMKDS 1 |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 200 V |
| Nominal current IN | 10 A |
| Nominal cross section | 1 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 4 |
| Screw thread | M2 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
