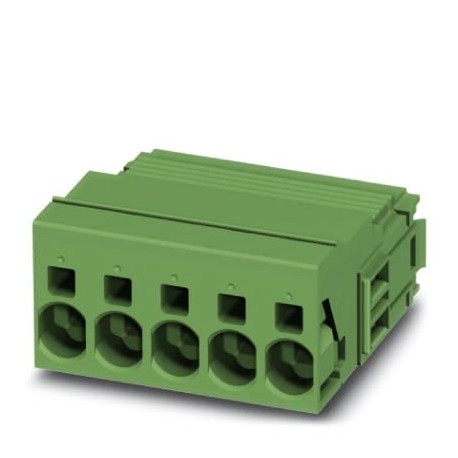

PHOENIX CONTACT ISPC 5/ 3-STGCL-7,62 GY ISPC 5/ 3-STGCL-7,62 GY 1708680 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ISPC 5/ 3-STGCL-7,62 GY 1708680 PHOENIX CONTACT Printed-circuit board connector

ISPC 5/ 3-STGCL-7,62 GY

1708680

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 6 mm², color: gray, nominal current: 41 A, dimensioning voltage (III/2): 1000 V, contact surface: Tin, contact type: Male, Number of potentials: 3, Number of rows: 1, Number of poles per row: 3, number of connections: 3, family of articles: ISPC 5/.. -STGCL, pitch: 7.62mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, Stecksystem: POWER COMBICON 5,Lock: Clip lock, packaging type: boxed
