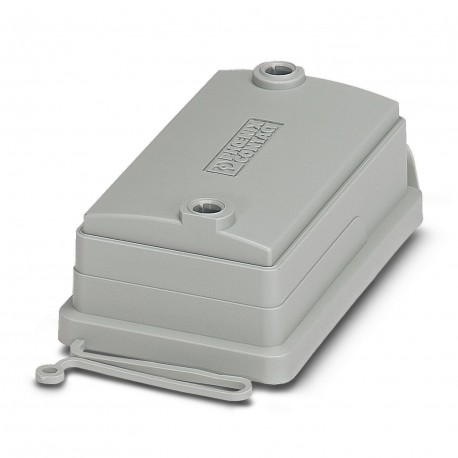

PHOENIX CONTACT HC-B 10-TMS-SD-IP50 HC-B 10-TMS-SD-IP50 1690749 PHOENIX CONTACT Protective covers View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B 10-TMS-SD-IP50 1690749 PHOENIX CONTACT Protective covers

HC-B 10-TMS-SD-IP50

1690749

PHOENIX CONTACT

10 Pcs.

Protective covers B10 protective cap, Clip lock, protective cap material: PA, height: 31.2 mm, seal: no, retaining cord ring diameter: 4 mm, with lashing cord Protective cover B10, with clip locking, protective cover material: PA, height: 31.2 mm, seal: no, with lanyard

Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeProtective cover
Housing typeProtective cover
TypeB10
Retaining cord presentyes
Seal presentno
Dimensions
Dimensional drawingtgsqlmtsjr.jpg
Width55 mm
Height31.2 mm
Length103 mm
Diameter3.5 mm
Material specifications
Material Protective coverPA
Flammability rating according to UL 94V0
Material, protective coverPA
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP50
Ambient temperature (operation)-20 °C ... 100 °C

ETIM for 1690749 Connectors (EC002314)
Feature Name Feature Value
With sealing (EF005610) No
With captivity element (EF012222) Yes
Colour (EF000007) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Ambient temperature (EF002386) 100 °C
Degree of protection (IP), mounted (EF007466) IP50
