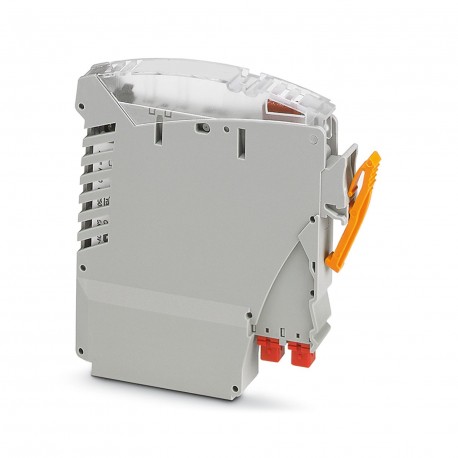

PHOENIX CONTACT IOA REL 24V DO/BFI/3.0A/EX IOA REL 24V DO/BFI/3.0A/EX 2910153 PHOENIX CONTACT Input/output module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IOA REL 24V DO/BFI/3.0A/EX 2910153 PHOENIX CONTACT Input/output module

IOA REL 24V DO/BFI/3.0A/EX

2910153

PHOENIX CONTACT

1 Pcs.

Input/output module Relay module for Marshalling VIP I/O base elements. To switch loads from 24 V DC up to max. 3 A. Includes fuse and fuse fault indication. Normally open or normally closed contact can be used.

Automation > Switching relay
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2910153
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 556 (C-5-2017)
GTIN4055626447278
Weight per Piece (excluding packing)30.500 g
Custom tariff number85364190
Country of originUS (United States)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width10.3 mm
Height64.2 mm
Depth72.9 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C

Coil side

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.9 ... 1.1
Typical input current at UN13.5 mA
Typical response time5 ms
Typical release time8 ms
Coil voltage24 V DC
Protective circuitReverse polarity protection Polarity protection diode
Free-wheeling diode Damping diode
Operating voltage displayYellow LED

Contact side

Contact type1 PDT
Type of switch contactSingle contact
Contact materialAgSnO
Maximum switching voltage24 V DC
Minimum switching voltage5 V (at 100 mA)
Min. switching current10 mA (at 12 V)
Limiting continuous current3 A (fuse limited)
Interrupting rating (ohmic load) max.140 W (at 24 V DC)

General

Operating mode100% operating factor
Degree of protectionIP20
Mechanical service life2x 107cycles
Mounting positionany
Assembly instructionsPlugs into VIP/...BASE...
Net weight (SAP)30.5 g

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Flammability rating according to UL 94V0
ConformanceANSI/ISA 60079-0; 60079-15
ANSI/IEC 60529
FM 3600; 3611; 3810
ATEXSira 17ATEX4293X; II 3G Ex nA nC IIC T4 Gc
IECExIECEx SIR 17.0078X; Ex nA nC IIC T4 Gc
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, IIC T4
CSA, USA/CanadaNon-incendive: Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, AEx nA nC IIC T4 Gc
Connection to Class I, II, III, Div. 2, Groups A, B, C, D, E, F, G
Non-incendive: Class I, Div. 2, Groups A, B, C, D T4
Ex nA nC IIC T4 Gc
Connection to Class I, II, and III, Zone 2, Groups A, B, C, D, E, F, G

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2910153 Relays (EC001437)
Feature Name Feature Value
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.0135 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 10.3 mm
Height (EF000040) 64.2 mm
Depth (EF000049) 72.9 mm
