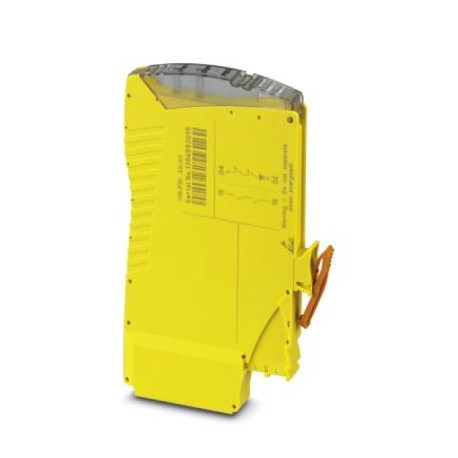

PHOENIX CONTACT IOA-PSR-PS22-1NO-1NC-24DC IOA-PSR-PS22-1NO-1NC-24DC 2702971 PHOENIX CONTACT Coupling relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IOA-PSR-PS22-1NO-1NC-24DC 2702971 PHOENIX CONTACT Coupling relay

IOA-PSR-PS22-1NO-1NC-24DC

2702971

PHOENIX CONTACT

1 Pcs.

Coupling relay Pluggable SIL coupling relay as an input/output accessory for VIP socket module, high and low demand applications SIL 3, Safe-State-Off, couples digital output signals to the periphery, 1 trip circuit, 1 acknowledgment circuit, test pulse filter

Automation > Device for monitoring of safety-related circuits
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2702971
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626510941
Weight per Piece (excluding packing)51.090 g
Custom tariff number85364900
Country of originDE (Germany)

Dimensions

Width10 mm
Height75 mm
Depth112 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C (observe derating)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)75 % (on average, 85% infrequently, non-condensing)
Max. permissible humidity (storage/transport)75 % (on average, 85% infrequently, non-condensing)
Maximum altitude≤ 2000 m (Above sea level)

Power supply

Rated control circuit supply voltage US24 V DC -20 % / +25 %
Rated control supply current IStyp. 25 mA
Power consumption at UStyp. 0.77 W
Inrush currenttyp. 100 mA (Δt s)
Filter timemax. 3 ms (at pins 05/06 in the event of voltage dips at Us)
max. 3 ms (at pins 05/06; low test pulse width)
≥ 50 ms (at pins 05/06; low test pulse width)
max. 17 ms (at pins 05/06; high test pulse width)
≥ 600 ms (at pins 05/06; high test pulse width)
Diagnostic supply voltage UD24 V DC -20 % / +25 % (at pin 04)
Input current at UD7 mA (at pins 04/03 for UD; + 100 mA depending on load at pin 02)
Inrush current at UDtyp. 200 mA (Δt D)
Protective circuitSurge protection 35 V suppressor diode (pins 05/06)33 V suppressor diode (pins 04/03)35 V suppressor diode (pins 02/03)
Polarity reversal protection for rated control circuit supply voltage and diagnostic supply voltage

Relay outputs: enabling current path

Output nameEnabling current path
Output descriptionsafety-related N/O contacts
Number of outputs1 (undelayed)
Contact type1 enabling current path
Contact materialAgSnO2
Switching voltagemin. 12 V AC/DC
max. 250 V AC/DC (Observe the load curve)
Limiting continuous current3 A (observe derating)
Inrush currentmin. 3 mA
max. 3 A
Sq. Total current9 A2(observe derating)
Switching capacitymin. 60 mW
Mechanical service life10x 106cycles
Switching capacity according to IEC 60947-5-13 A (24 V (DC13))
3 A (230 V (AC15))
Output fuse3 A gL/gG

Relay outputs: return current/signaling current path

Output nameConfirmation current path
Output descriptionSafety-related N/C contacts
Number of outputs1 (undelayed)
Contact type1 confirmation current path
Contact materialAgCuNi, + Au
Switching voltagemin. 19.2 V DC
max. 30 V DC
Limiting continuous current100 mA
Inrush currentmin. 1 mA
max. 100 mA
Switching capacitymin. 20 mW
Output fuse150 mA Fast-blow

Times

Typical pickup time at US150 ms (when controlled via pins 05/06)
Typical release time at US30 ms (when controlled via pins 05/06)
Recovery time500 ms

General

Relay typeElectromechanical relay with forcibly guided contacts in accordance with IEC/EN 61810-3 (EN 50205)
Nominal operating mode100% operating factor
Net weight51.09 g
Mounting positionvertical or horizontal
Mounting typePlug-in mounting
Assembly instructionsSee derating curve
Degree of protectionIP20
Min. degree of protection of inst. locationIP54
Housing materialPA 6.6
Housing coloryellow
Status display2 x LED bi-color (green, red)

Connection data

Connection methodPluggable onto VIP base module
pluggableYes

Safety-related characteristic data

Stop category0
DesignationIEC 61508 - High demand
Safety Integrity Level (SIL)3 (
DesignationIEC 61508 - Low demand
Safety Integrity Level (SIL)3 (
DesignationEN ISO 13849
Performance level (PL)e
Category4
DesignationEN 62061
Safety Integrity Level Claim Limit (SIL CL)3
DesignationEN 50156-2
Safety Integrity Level (SIL)3 (Reference IEC 61508)

Standards and Regulations

DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsDIN EN 50178, EN 60079-15
Rated insulation voltage250 V AC
Rated surge voltage/insulationBasic insulation 4 kV between all current paths and housing
Safe isolation, 6 kV reinforced insulation from the control circuit (05/06) and diagnostics circuit (03/04/02) to the enabling current path (15/19)
Degree of pollution2
Overvoltage categoryIII
Shock15 g (in the event of continuous stress caused by shock, contact reactions are possible.)
Vibration (operation)10 Hz ...150 Hz, 2g
ConformanceCE-compliant

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2702971 Relays (EC001449)
Feature Name Feature Value
Model (EF000010) Basic device
Suitable for rail mounting (EF003972) No
With detachable clamps (EF003340) Yes
Suitable for monitoring of emergency-stop circuits (EF007268) No
Suitable for monitoring of valves (EF007272) No
Suitable for monitoring of optoelectronic protection equipment (EF007269) No
Suitable for monitoring of tactile sensors (EF007271) No
Suitable for monitoring of magnetic switches (EF007266) No
Suitable for monitoring of proximity switches (EF007267) No
Evaluation inputs (EF008245) Other
With start input (EF003342) No
With muting function (EF004057) No
With feedback circuit (EF003343) No
Release-delay (EF001129) 0.15 s
Number of outputs, safety related, undelayed, with contact (EF003344) 1
Number of outputs, safety related, delayed, with contact (EF003345) 0
Number of outputs, safety related, undelayed, semiconductors (EF003346) 0
Number of outputs, safety related, delayed, semiconductors (EF003347) 0
Number of outputs, signalling function, undelayed, with contact (EF003348) 1
Number of outputs, signalling function, delayed, with contact (EF003349) 0
Number of outputs, signalling function, undelayed, semiconductors (EF003350) 0
Number of outputs, signalling function, delayed, semiconductors (EF003351) 0
Stop category according to IEC 60204 (EF007498) Other
With approval for BG BIA (EF004145) No
With approval according to UL (EF001783) No
Width (EF000008) 10 mm
Height (EF000040) 75 mm
Depth (EF000049) 112 mm
