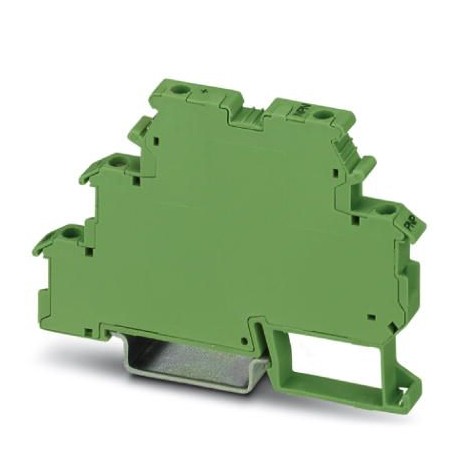

PHOENIX CONTACT DEK-TR/INV DEK-TR/INV 2964319 PHOENIX CONTACT Switching amplifier View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DEK-TR/INV 2964319 PHOENIX CONTACT Switching amplifier

DEK-TR/INV

2964319

PHOENIX CONTACT

1 Pcs.

Switching amplifier Inverter module. The inverter module reverses the signals from the ground-connected NPN transistor outputs into positive-connected PNP outputs, as well as the PNP connection signals into NPN connection signals.

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2964319
Packing unit10 pc
Catalog pagePage 453 (C-5-2017)
GTIN4017918176068
Weight per Piece (excluding packing)19.900 g
Custom tariff number85364190
Country of originCN (China)

Dimensions

Width6.2 mm
Height80 mm
Depth56 mm

General

Supply voltage range20 V DC ... 30 V DC (UV)
Continuous current200 mA
Residual voltage drop< 1 V
Leakage current< 1 mA
Max. transmission frequency15 kHz

NPN input/PNP output

Switch-on threshold< 5 V (at UV= 24 V; < (UV- 19 V))
Switch-off threshold> 15 V (at UV= 24 V; > (UV- 9 V))
Min. limit values-2 V
Max. limit values26 V (at UV= 24 V; UV+ 2 V)

PNP input/NPN output

Switch-on threshold> 19 V
Switch-off threshold< 9 V
Min. limit values-2 V
Max. limit values26 V (at UV= 24 V; UV+ 2 V)

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Connection methodScrew connection
Stripping length8 mm
Screw threadM3

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Type of noteNote on application
NoteUse of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2964319 Relays (EC001504)
Feature Name Feature Value
With LED indication (EF005950) No
