View larger
Images are for illustrative purposes only. Please refer to data sheet for details

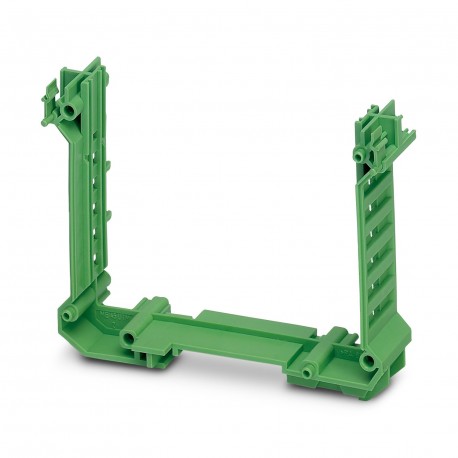

ME 45 UTM GN 2853404 PHOENIX CONTACT Mounting base housing
ME 45 UTM GN
2853404
PHOENIX CONTACT
10 Pcs.
Mounting base housing
Rail box, Intermediate element, for modular expansion of the housing volume, high design, with ventilation slits, width: 22.6 mm, height: 99 mm, depth: 74 mm, colour: green (6021), cross bridge: without bus connector, number of poles cross connector: not relevant
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2853404 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 675 (C-1-2013) |
| GTIN | 4017918173074 |
| Weight per Piece (excluding packing) | 14.160 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 22.6 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 74 mm |
