View larger
Images are for illustrative purposes only. Please refer to data sheet for details

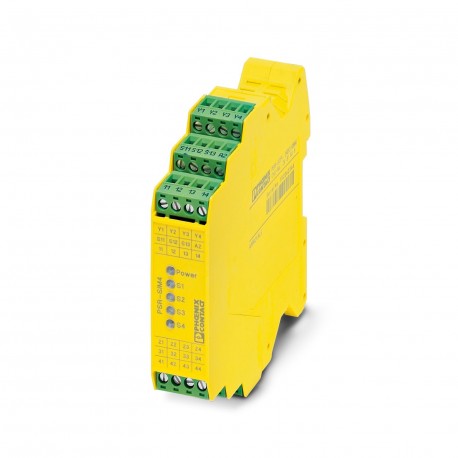

PSR-SPP- 24DC/SIM4 2981949 PHOENIX CONTACT Safety relays
PSR-SPP-24DC/SIM4
2981949
PHOENIX CONTACT
1 Pcs.
Safety relays
Interface module for connecting various sensors or safety switches with NO/NC contacts to the PSR-SDC4 safety relay, plug-in push-in terminal block
Automation > Device for monitoring of safety-related circuits
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2981949 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 265 (C-6-2017) |
| GTIN | 4046356325998 |
| Weight per Piece (excluding packing) | 99.990 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Degree of protection | IP20 |
General
| Status display | Green LED |
|---|---|
| Max. permissible current | 100 mA (per signal output) |
| Max. permissible total current | 100 mA (alarm outputs) |
| Nominal operating mode | 100% operating factor |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Designation | Air clearances and creepage distances between the power circuits |
| Standards/regulations | DIN EN 50178 |
| Rated surge voltage/insulation | 0.8 kV |
| Rated insulation voltage | 50 V DC |
| Degree of pollution | 2 |
| Overvoltage category | III |
Connection data
| Connection method | Spring-cage connection |
|---|---|
| pluggable | Yes |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 50 V DC |
| Rated surge voltage/insulation | 0.8 kV |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027371102eCl@ss 4.127371102eCl@ss 5.027371901eCl@ss 5.127371900eCl@ss 6.027371800eCl@ss 7.027371819eCl@ss 8.027371819eCl@ss 9.027371819
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Basic device |
| Suitable for rail mounting (EF003972) | No |
| With detachable clamps (EF003340) | Yes |
| Type of electric connection (EF003961) | Spring clamp connection |
| Suitable for monitoring of emergency-stop circuits (EF007268) | No |
| Suitable for monitoring of valves (EF007272) | No |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | No |
| Suitable for monitoring of tactile sensors (EF007271) | No |
| Suitable for monitoring of magnetic switches (EF007266) | No |
| With muting function (EF004057) | No |
| With feedback circuit (EF003343) | Yes |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| With approval for BG BIA (EF004145) | No |
| With approval according to UL (EF001783) | No |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 117 mm |
| Depth (EF000049) | 106 mm |
