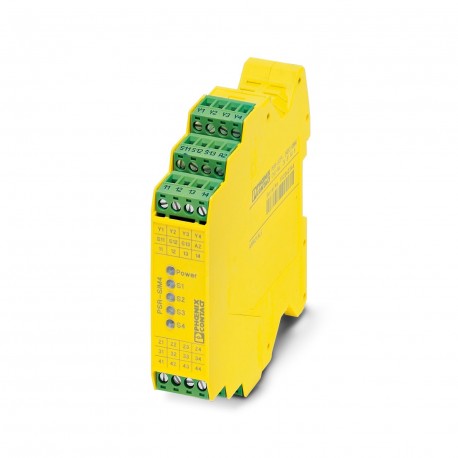

PSR-SCP- 24DC/SIM4 2981936 PHOENIX CONTACT Safety relays
PSR-SCP-24DC/SIM4
2981936
PHOENIX CONTACT
1 Pcs.
Safety relays
Interface module for connection of various sensors or safety switches with closed/open contacts to the PSR-SDC4 safety relay, with screw connection
Interface module for the connection of several safety sensors or switches with NC/NO contacts to the safety relay PSR-SDC4, with screw connection
Automation > Device for monitoring of safety-related circuits
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
Product properties
| Product type | Interface module |
| Product family | PSRclassic |
| Data management status | |
| Article revision | 03 |
Electrical properties
| Max. permissible current | 100 mA (per signal output) |
| Max. permissible total current | 100 mA (alarm outputs) |
| Nominal operating mode | 100% operating factor |
| Air clearances and creepage distances between the power circuits | |
| Rated insulation voltage | 50 V DC |
| Rated surge voltage | 0.8 kV |
Input data
| Nominal input voltage UN | 24 V DC (from PSR) |
| Input voltage range in reference to UN | 0.85 ... 1.1 |
| Nominal input voltage UN | 24 V DC (from PSR) |
Connection data
| Connection technology | |
| pluggable | yes |
| Conductor connection | |
| Connection method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Stripping length | 7 mm |
| Screw thread | M3 |
Signaling
| Status display | LED (green) |
| Status display present | Yes |
Dimensions
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 106 mm |
Material specifications
| Housing material | Polyamide |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Maximum altitude | max. 2000 m (Above sea level) |
Standards and regulations
| Air clearances and creepage distances between the power circuits | |
| Standards/regulations | DIN EN 50178 |
Mounting
| Assembly note | in rows with zero spacing |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Basic device |
| Suitable for rail mounting (EF003972) | No |
| With detachable clamps (EF003340) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for monitoring of emergency-stop circuits (EF007268) | No |
| Suitable for monitoring of valves (EF007272) | No |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | No |
| Suitable for monitoring of tactile sensors (EF007271) | No |
| Suitable for monitoring of magnetic switches (EF007266) | No |
| With muting function (EF004057) | No |
| With feedback circuit (EF003343) | Yes |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| With approval for BG BIA (EF004145) | No |
| With approval according to UL (EF001783) | No |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 106 mm |
